Description

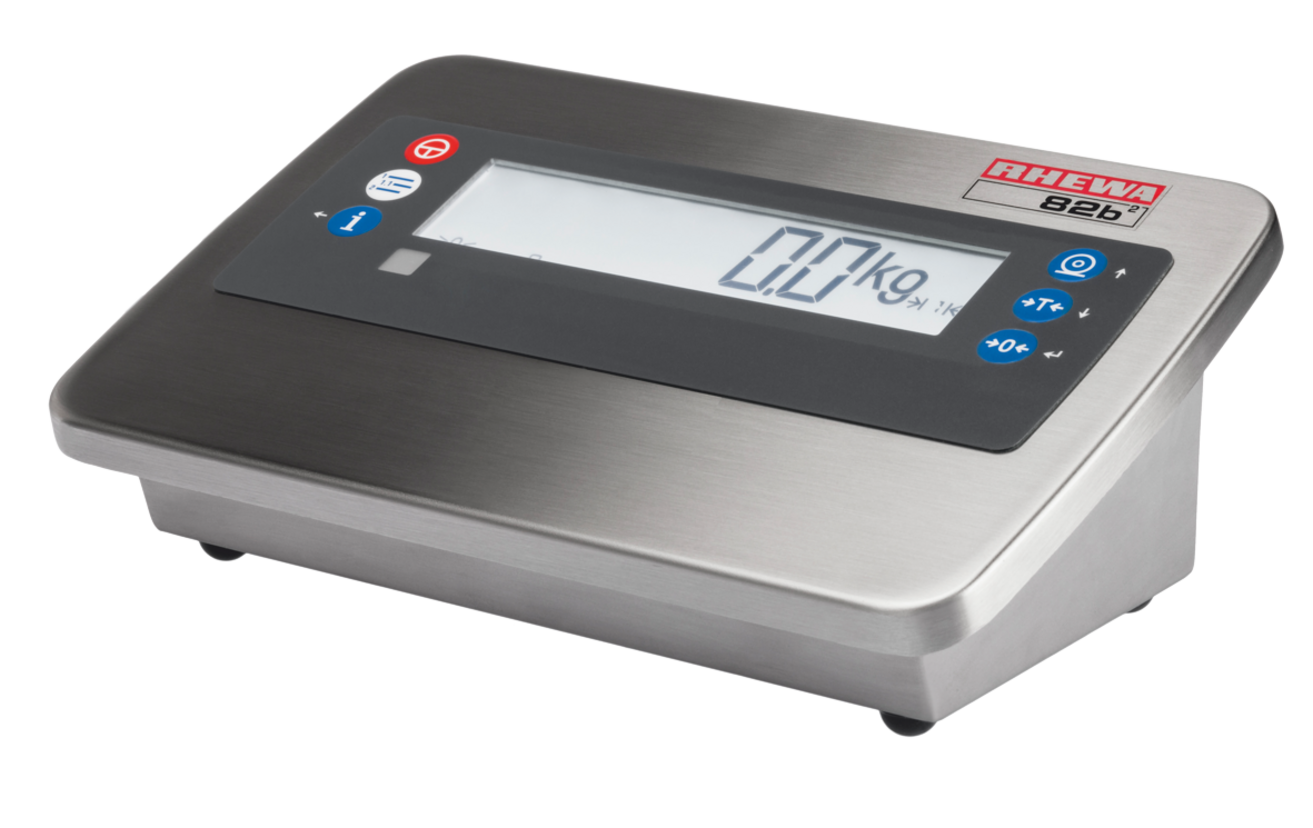

Indicator 82b-2, EC Class III approved
The ideal appliance for quick and easy weighing with tare function. Rugged IP67 stainless steel enclosure with 25 mm, easy-to-read LCD display and white backlight.<br/> For bench, stand or wall-mounted use.
1 serial port for connecting a computer, printer, barcode reader, remote display, etc.
- Automatic tare can be enabled
- 2 digital inputs/1 output
- USB, Ethernet, WiFi, Profibus, RS422, analogue output
- Tri-colour signalling device integrated in enclosure front
- Alibi memory device and battery-buffered clock
- 10 user-configurable weighing sequences and print layouts
- Electronic verification seal
- Integral switched-mode power supply
- Software modules for statistics, counting/order-picking systems, etc.
- Animal weighing program
Downloads
Accessories
Indicator cover
Bracket for mounting on the front of weighing platforms 032-035
Wall bracket, stainless steel, adjustable tilt design

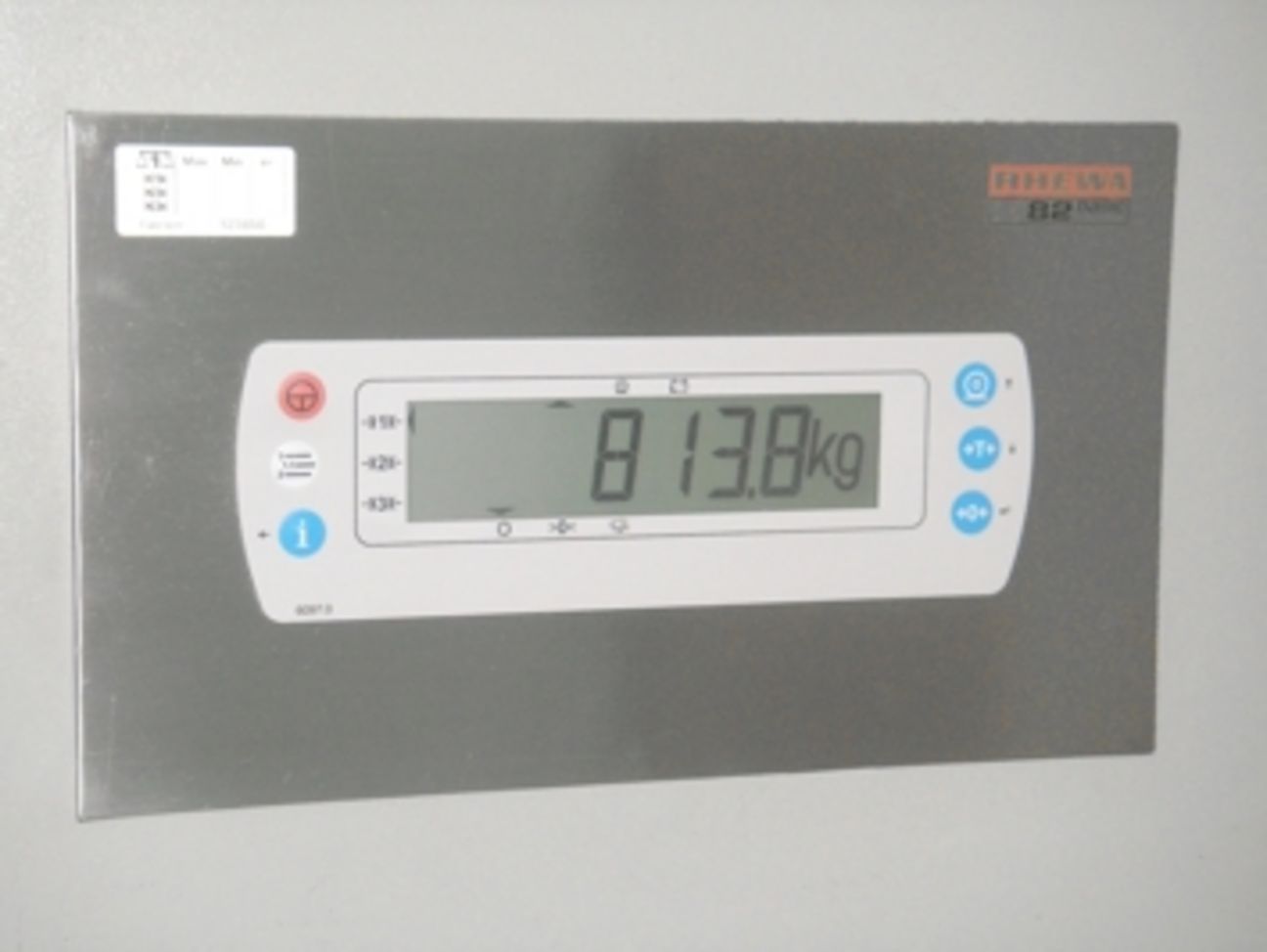

Control cabinet bracket
Floor stand, powder-coat finish
0218 - Floor stand, CNS 1.4301 stainless steel
Analogue output option card (instead of RS-232), 0-20 mA, 4-20 mA, 0-5 V, 0-10 V, gross or net, including RS-422, RS-485

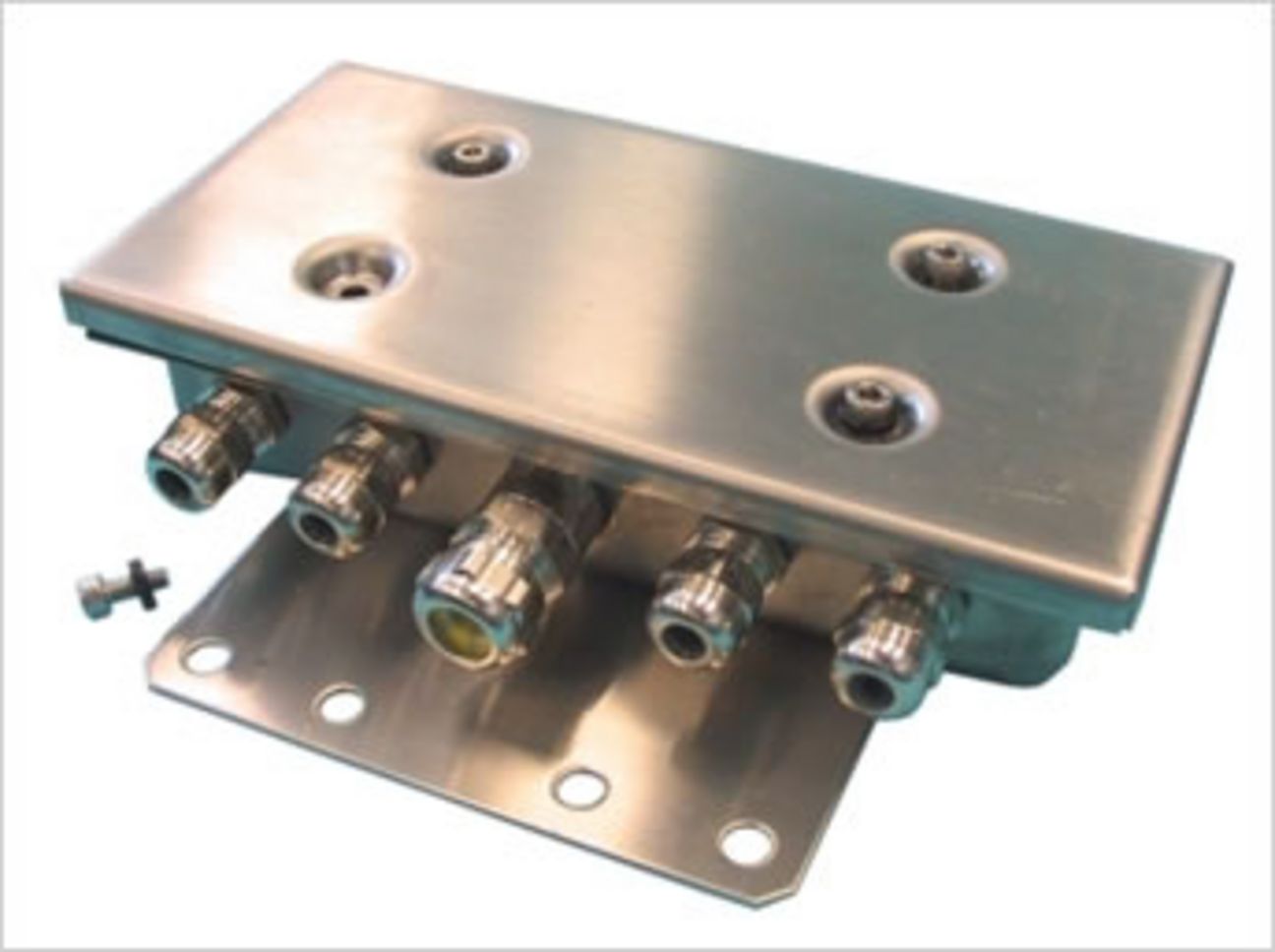

0407/0 - Terminal unit for 2-4 load cells, IP67 stainless steel enclosure, without measurement cable
0407/1 - Anschlusseinheit für 1 Wägezelle, Alugehäuse IP 65, fertig verdrahtet, mit 5 m Messkabel
0407/2 - Anschlusseinheit für 1 Wägezelle, Alugehäuse IP 65, fertig verdrahtet, mit 5 m Messkabel

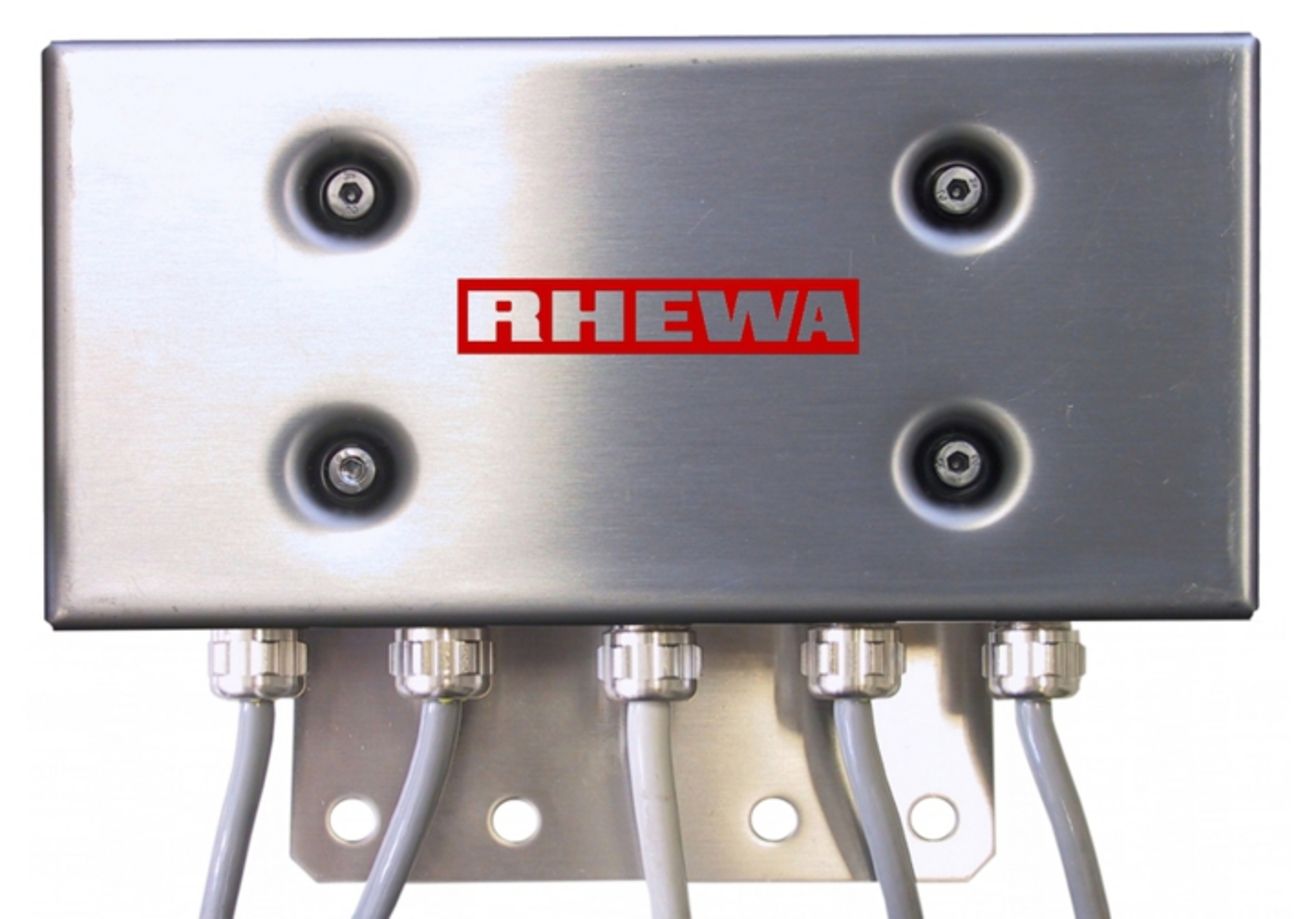

0407/3 - Terminal unit for 2-4 load cells, IP67 stainless steel enclosure, pre-wired, with 5 m measurement cable, permanent connection
0407/4 - Terminal unit for 2-4 load cells, IP67 stainless steel enclosure, pre-wired, with 5 m measuring cable, plug-in connection
0407/5 - Anschlusseinheit für 1 Wägezelle, Alugehäuse IP 65, ohne Messkabel
0409 - Verlängertes Messkabel mit Festanschluss oder Steckverbindung
0410 - Steckverbindung am Auswertegerät
10/100/1000 Mbit Ethernet network card (instead of RS-232) including alibi memory (0472)
0423 - Schnittstellenkonverter für PC RS422 auf RS232
0426 - Bluetooth-Funkverbindung
0438/82B - Inputs/outputs
0438/82B Inputs/outputs - unconfigured with potential functions: switching/status feedback/keypad control - without cable (see 0436), on-board version. 2 inputs/1 output (external voltage supply required), activation via board-related enabling code. Bei 82b-2: Digital inputs/outputs on board, 2 inputs/1 output.
Description
Description
Description
0621 - Programmierung von z.B. Sonderdruckbildern einschl. Bedienablauf, Barcode
Printer/peripherals
A very compact dot matrix printer that can also be used with carbon paper. When combined with the optional printer bracket, it can be attached to all indicators.
Roll printer SD-58TD, for thermal paper
A very compact direct thermal printer to be used with thermal paper. When combined with the optional printer bracket, it can be attached to all indicators.

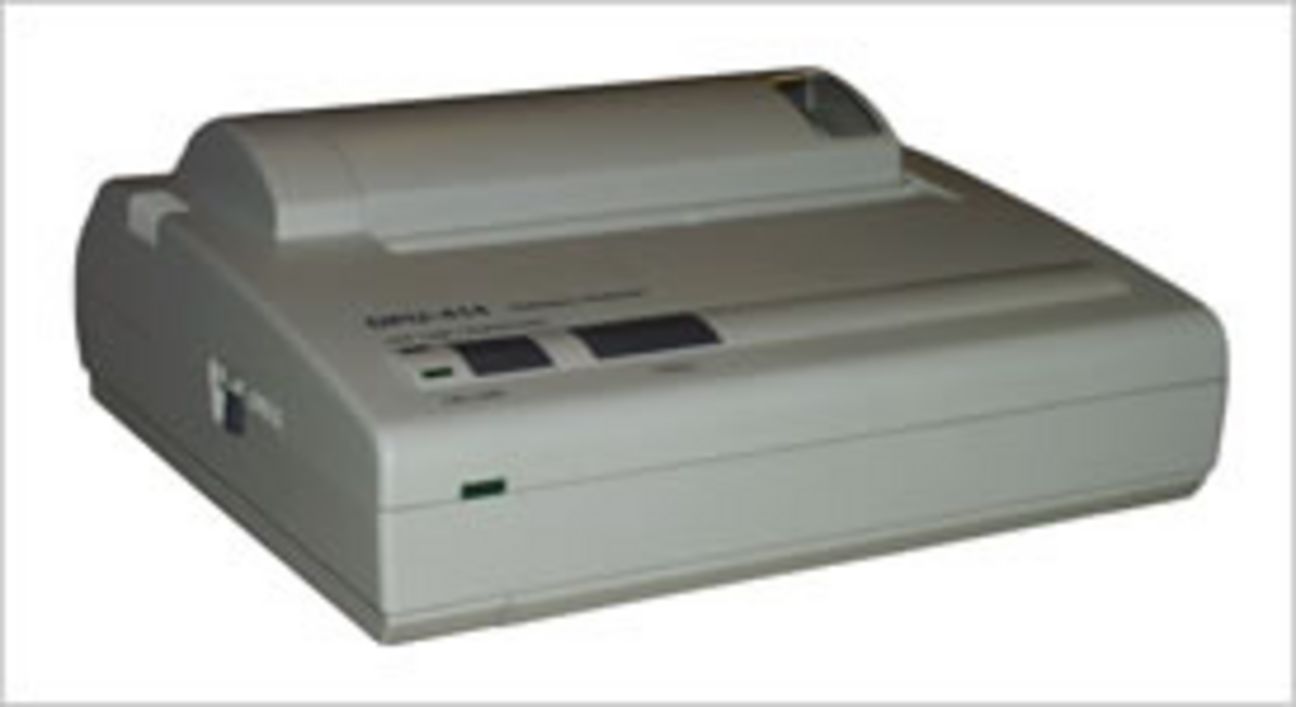

Roll printer DPU-414, for thermal paper
0236 - Halter für Rollendrucker 0235, 0274, 0275

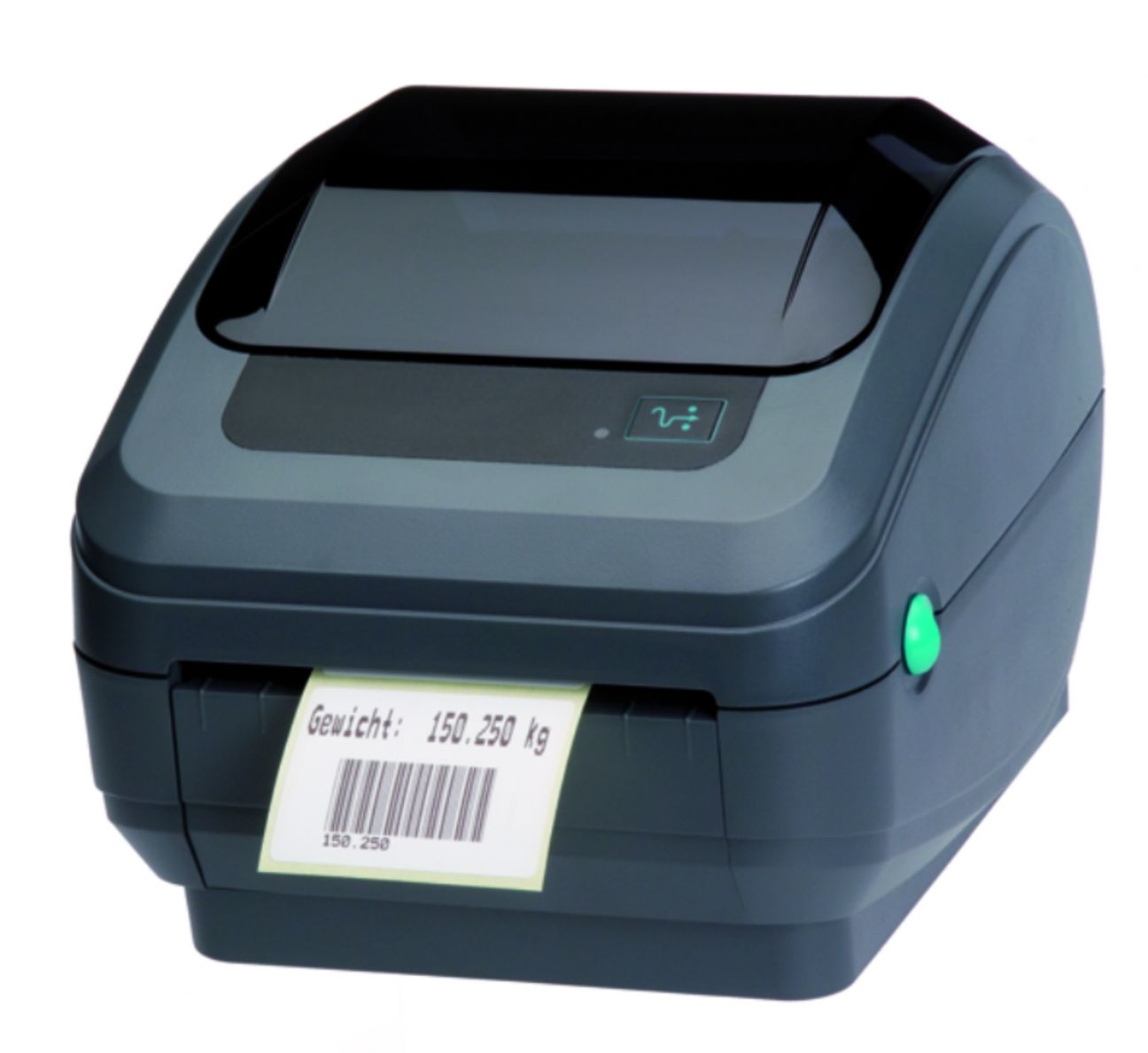

Label printer ED108-TDS-B, for thermal paper
Label printer ED108-TTS-B, for plain and thermal paper, with dispenser, 108 mm paper width

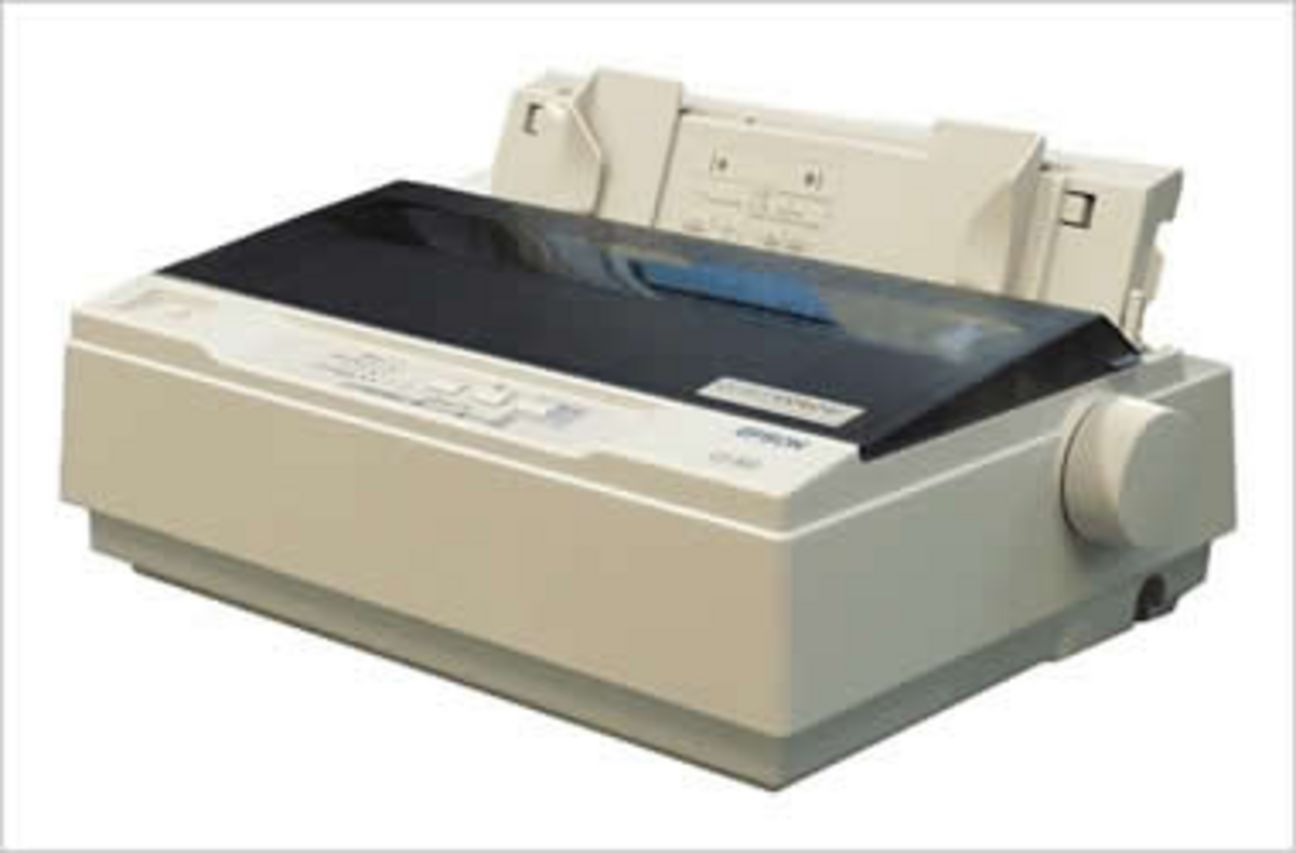

Forms printer LX-300+, for plain paper
USB data logger 0267-5: Ultra-simple recording of weighing data on a standard USB stick for processing on a PC using materials management software, Excel, etc.
0285/12 - RFID transponder reader with USB data logger, watertight design (IP66)
RFID transponder reader with integral USB data logger for storing incoming data in files on the USB stick.
Storage capacity of the USB stick supplied: 8 GB.
Weather-resistant plastics enclosure (140 x 110 x 60 mm)
![[Translate to english:] 0285/12 RFID-Transponder-Lesegerät mit USB-Datenlogger, wasserdicht IP66](/fileadmin/produkte/Zubehoer/0285-12.png "[Translate to english:] 0285/12 RFID-Transponder-Lesegerät mit USB-Datenlogger, wasserdicht IP66")
