Description

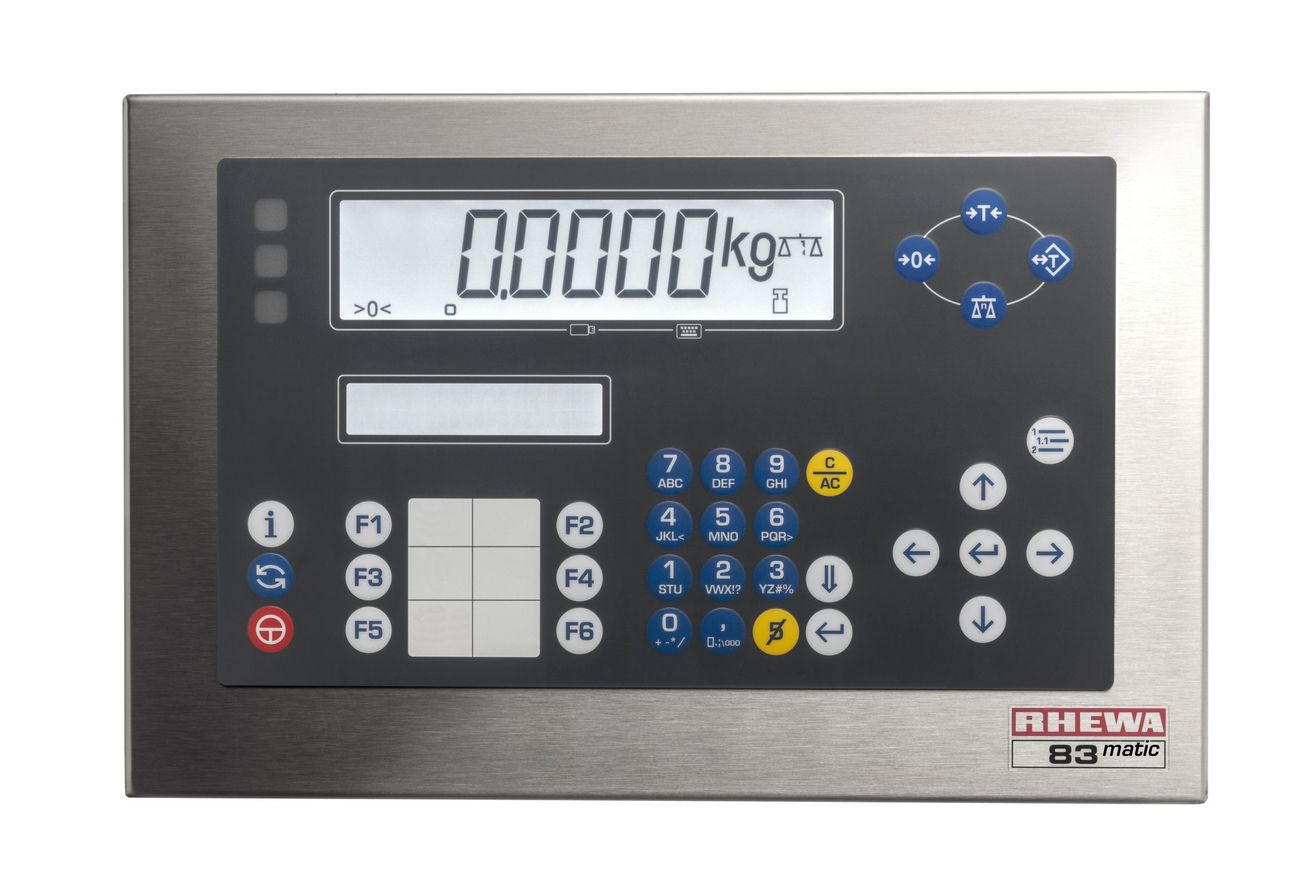

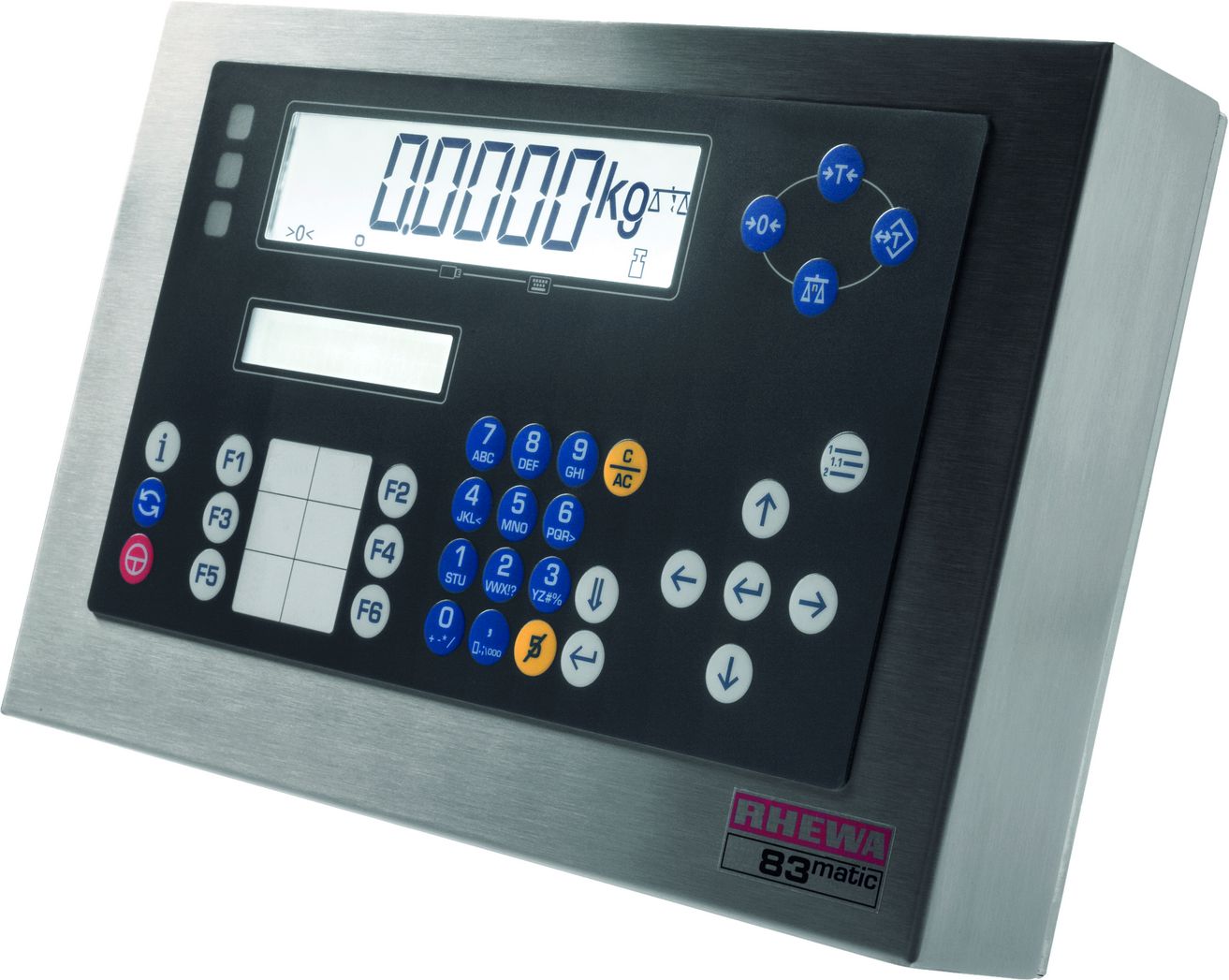

Indicator 83matic, legal-for-trade, for automatic scales
The indicator 83matic is the flexible solution for automatic scales, combining robust design, high user-friendliness, and practical interfaces.
Approvals: SWA and SWE certified (OIML R 61, R 51)
Robust design: Stainless steel housing made of chrome-nickel steel 1.4301, IP65 protection class, net weight 2.8 kg
Flexible mounting: Suitable for table, wall, or tripod use
Display: Main display with 14-segment LCD, 27 mm digits, 7 digits, backlit; secondary display with 2 x 20 characters LCD, 5.5 mm digit height, backlit
User-friendliness: 34-key foil keypad with alphanumeric input, highly resistant to aggressive substances
Connectivity: Standard with two serial interfaces (RS-232), USB device, USB host, Ethernet
Load cell connection: 1 measuring input, up to 10 load cells at 350 Ω or 30 load cells at 1100 Ω, supply voltage 12 VDC
Memory:
- Summation memory for up to 160 storage slots
- Alibi memory with up to 6 million entries (SWE)
- Database with up to 1000 datasets
- Tare memory and fixed value memory for rapid parameter settings
- Reliability: Battery-buffered real-time clock with around 10 years lifespan
- Software: Summation, filling, price labeling, control and switching functions, customizable print layouts, easy IT integration, alibi memory with variable storage
Applications:
- SWA: Fast and reproducible filling with optimized control (coarse, medium, and fine streams)
- SWE: Recording of individual weights with control of conveyor, weighing, and discharge sections and storage of all weights in the alibi memory
Downloads
Accessories
Indicator cover
Bracket for mounting on the front of weighing platforms 032-035
Wall bracket, stainless steel, adjustable tilt design
Floor stand, powder-coat finish
0218 - Floor stand, CNS 1.4301 stainless steel
Analogue output option card (instead of RS-232), 0-20 mA, 4-20 mA, 0-5 V, 0-10 V, gross or net, including RS-422, RS-485
Description
Large/Auxiliary display 0405/10 - Stainless steel enclosure (IP67)
The large/auxiliary display 0405/10 features an extremely resistant IP67 stainless steel enclosure. The use of very bright, dimmable 7 segment LEDs makes the display incredibly easy to read in all conditions.
Connection to other equipment can be via RS-232, TTY or Ethernet.<br/> The industry-standard data logs are already pre-installled and can be selected. Special communication protocols are not a problem either, however, and can be supplied.
Additional highlights:
- Optical display filter and brightness adjustment
- Weighing function indication
- Integral 230V supply with 2m power cord
- Configurable data record reception (optional)
- Wall bracket for adjusting the angle of tilt and read-off (optional)
Downloads
Options
0200/5 - Stainless steel swivel-and-tilt wall bracket for indicators
Description
Large display 0405/20 - Ideal over long distances
The large display 0405/20 is the right choice whenever the indication has to be read over large distances of 30 metres and more.
The display electronics are housed in the powder-coated steel enclosure with hood.
Very bright LEDs ensure the display is very easy to read in all conditions, and the brightness is adjustable.
Connection to other equipment can be made via RS-232. The market-standard data logs are already pre-installed and can be selected.
0410 - Steckverbindung am Auswertegerät
10/100/1000 Mbit Ethernet network card (instead of RS-232) including alibi memory (0472)
0423 - Schnittstellenkonverter für PC RS422 auf RS232
0424 - Schnittstellenkonverter für PC USB auf RS232 (Win 10)
0426 - Bluetooth-Funkverbindung
Audio-visual signalling device
0604 – COM Terminal software for testing of port functionality
Description
Printer/Peripherals
A very compact dot matrix printer that can also be used with carbon paper. When combined with the optional printer bracket, it can be attached to all indicators.
Roll printer SD-58TD, for thermal paper
A very compact direct thermal printer to be used with thermal paper. When combined with the optional printer bracket, it can be attached to all indicators.
Roll printer for thermal paper or labels
0236 - Halter für Rollendrucker 0235, 0274, 0275
0278-11 - Etikettendrucker ED108-TDS-C, für Thermopapier, mit Etikettenspender
0278-12 - Etikettendrucker ED108-TTS-C, für Normal- u. Thermopapier, mit Etikettenspender
0279-2 – Label printer ED 104-TTS/IG with metal enclosure
0279-2 – Label printer ED 104-TTS-IG with metal enclosure, direct thermal and thermal transfer, including label dispenser
0238-2 - Formulardrucker LQ-590II, 24-Nadel-Matrixdrucker (80 Spalten/A4)
USB data logger 0267-5: Ultra-simple recording of weighing data on a standard USB stick for processing on a PC using materials management software, Excel, etc.
0267/6-1 - Data logger for storage of weighing data
0285/12 - RFID transponder reader with USB data logger, watertight design (IP66)
RFID transponder reader with integral USB data logger for storing incoming data in files on the USB stick.
Storage capacity of the USB stick supplied: 8 GB.
Weather-resistant plastics enclosure (140 x 110 x 60 mm)
![[Translate to english:] 0285/12 RFID-Transponder-Lesegerät mit USB-Datenlogger, wasserdicht IP66](/fileadmin/produkte/Zubehoer/0285-12.png "[Translate to english:] 0285/12 RFID-Transponder-Lesegerät mit USB-Datenlogger, wasserdicht IP66")
0267/3 - USB data logger with IP65 socket on the indicator
The USB data logger allows the user to store data records, with no direct connection to a PC, on a USB stick.
