Count/weigh systems 8-036
EC Class III approved
  • Description
  • Downloads
  • Versions
  • Options
  • Are you interested in this product? Request product!

Description

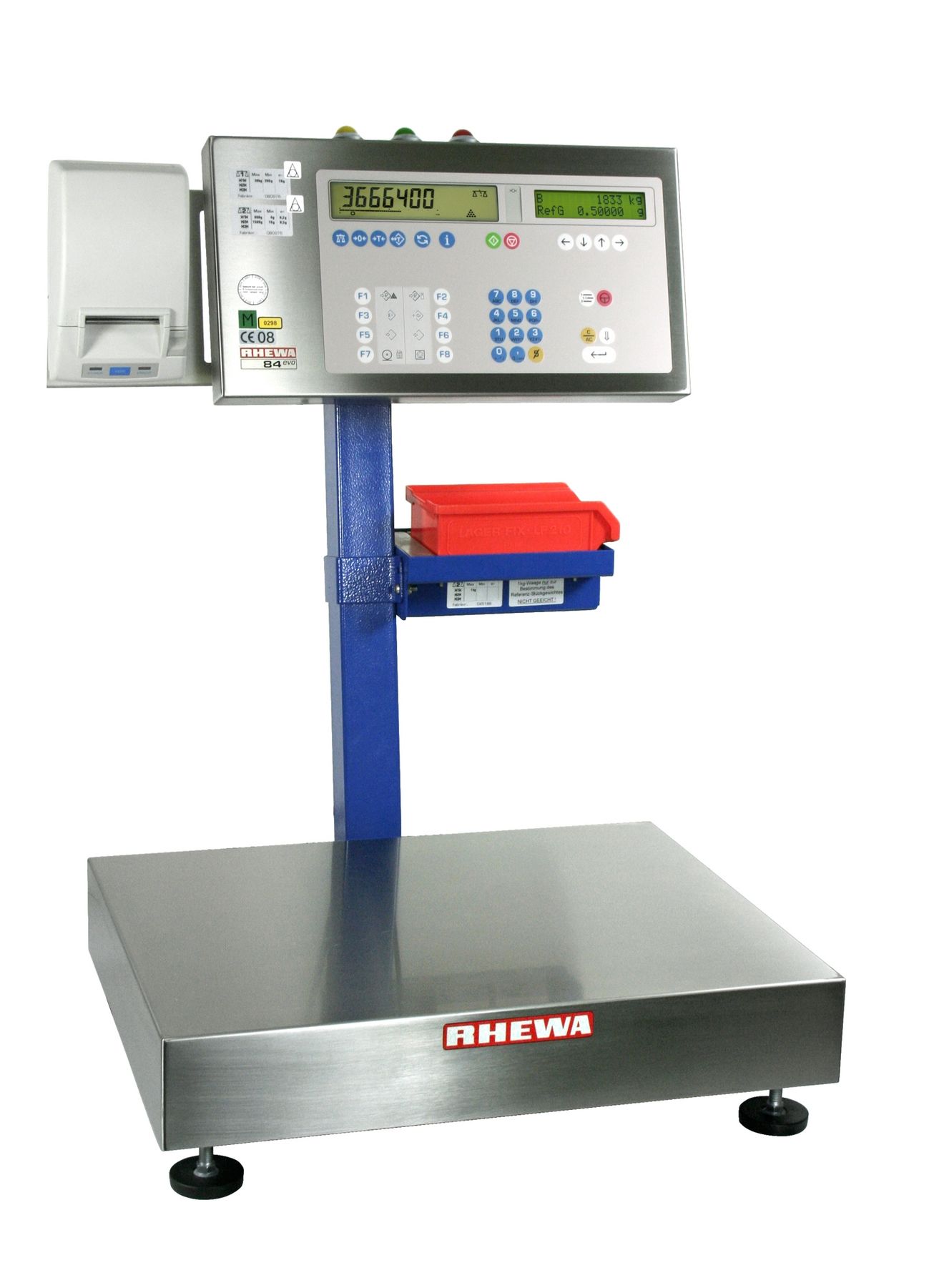

Electronic count/weigh systems 8-036 - EC Class III approved

Electronic count/weigh systems 8-036 - EC Class III approved
Compact, reliable + precise!

The combination of a quantity and reference scale with a compact bench-type indicator guarantees extremely accurate count results. With Ethernet, USB and two serial ports plus a legal-for-trade data memory for connecting a computer and printer (RS23). Also available with audio-visual signalling. Available without stand on request.

Powder-coat finish, platform and indicator in stainless steel.

Comes in two standard versions:

  • 83sigma version with 83sigma indicator with alphanumeric keypad, database of product data such as name, ID number, unit weight, read-only memory for numeric product data, 28 mm LCD weight display and additional two-line information display for indication of product information and user guidance.

  • 84vario version with 84vario indicator with alphanumeric keypad and additional four-line information display for indication of product information and user guidance. Large memory capacity for measured reference weights and product databases. Ability to connect two additional weighing platforms for larger weights.

This way to our modular count/weigh systems

*Legal-for-trade reference system.

Downloads

  • [Translate to english:] Produkt-Broschüre [Translate to english:] Merkmale, Anwendungsbereiche und technischen Daten auf einen Blick zusammengefasst
  • [Translate to english:] Bedienungsanleitung 83sigma [Translate to english:] Alle im Standard verfügbaren Funktionen sind für den Anwender hier beschrieben
  • [Translate to english:] Bedienungsanleitung 84vario [Translate to english:] Alle im Standard verfügbaren Funktionen sind für den Anwender hier beschrieben

Versions

Platform mmWeighing range kgScale interval gOrder no.
350 x 2800.02 - 3183SIGMA-036/1/3
350 x 2800.04 - 6283SIGMA-036/1/6
350 x 2800.1 - 15583SIGMA-036/1/15
350 x 2800.2 - 301083SIGMA-036/1/30
500 x 4000.2 - 301083SIGMA-036/2/30
500 x 4000.4 - 602083SIGMA-036/2/60
500 x 4001.0 - 1505083SIGMA-036/2/150
500 x 4000.2 - 301084vario-036/30
500 x 4000.4 - 602084vario-036/60
500 x 4001.0 - 1505084vario-036/150
  all types including reference scale* for items weighing 0.05 grams and more
140 x 90 x 500 - 1.50.5

Options

0236 - Halter für Rollendrucker 0235, 0274, 0275

Roll printer SD-58TD, for thermal paper

A very compact direct thermal printer to be used with thermal paper. When combined with the optional printer bracket, it can be attached to all indicators.
