Indicator 82c-1
EC Class III approved
  • Description
  • Downloads
  • Accessories
  • Printer/Peripherals
  • Are you interested in this product? Request product!

Description

Indicator 82c-1, EC Class III approved

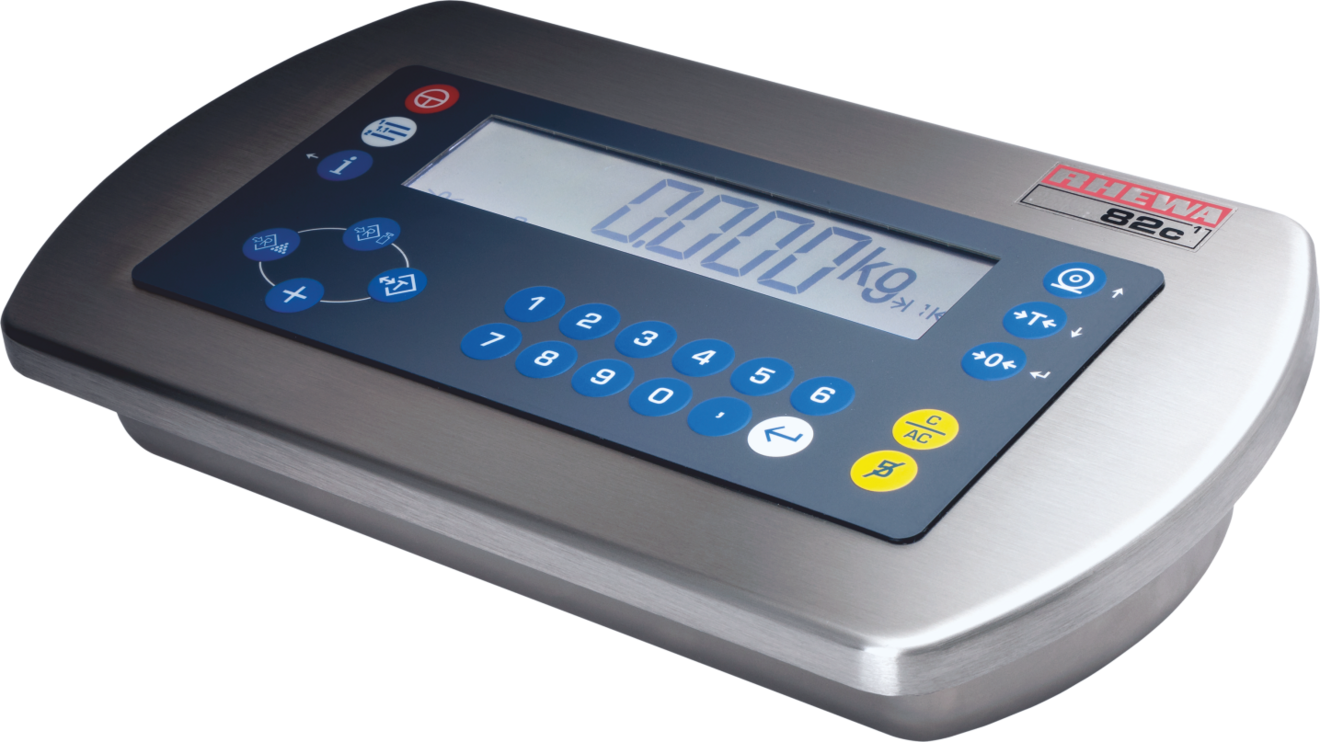

82c-1 Tischausfuehrung
82c-1 Tischausfuehrung

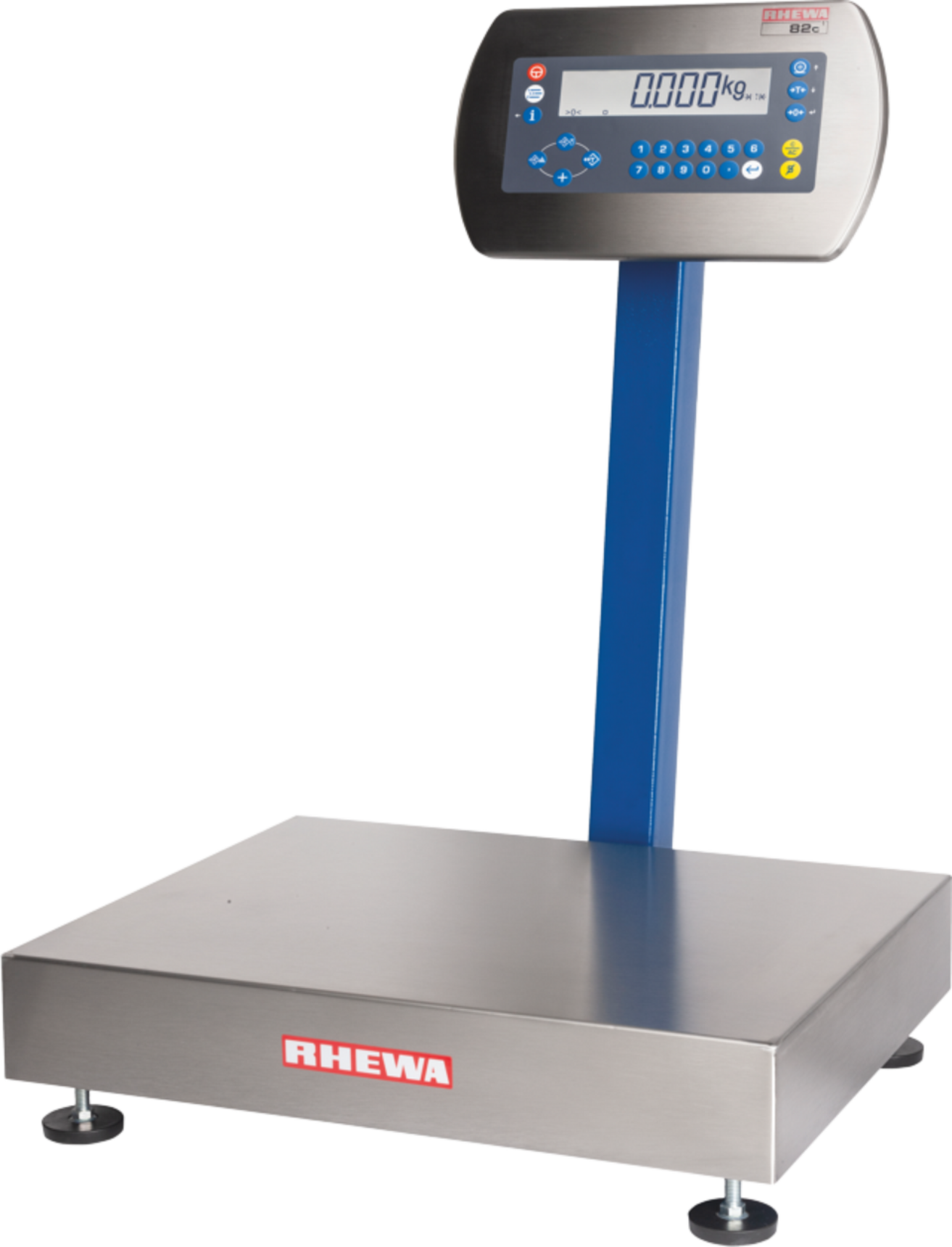

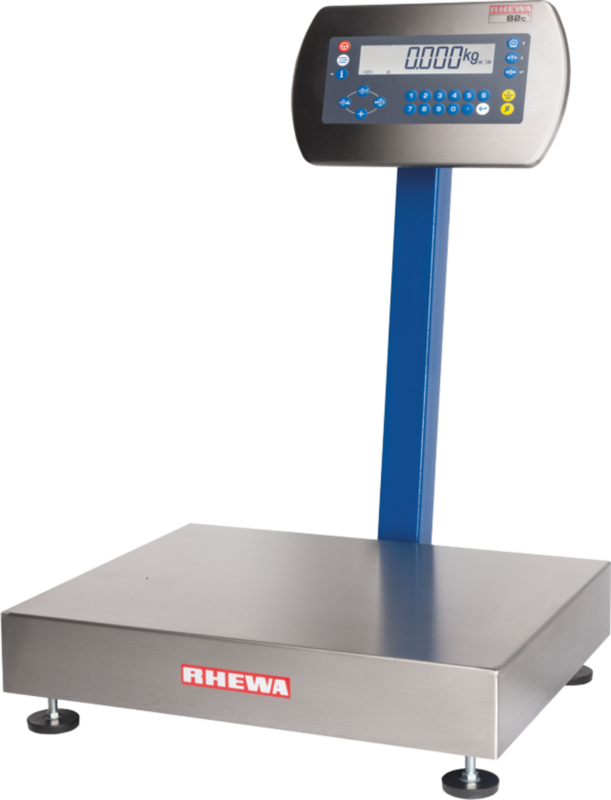

833c-1_Tischwaage

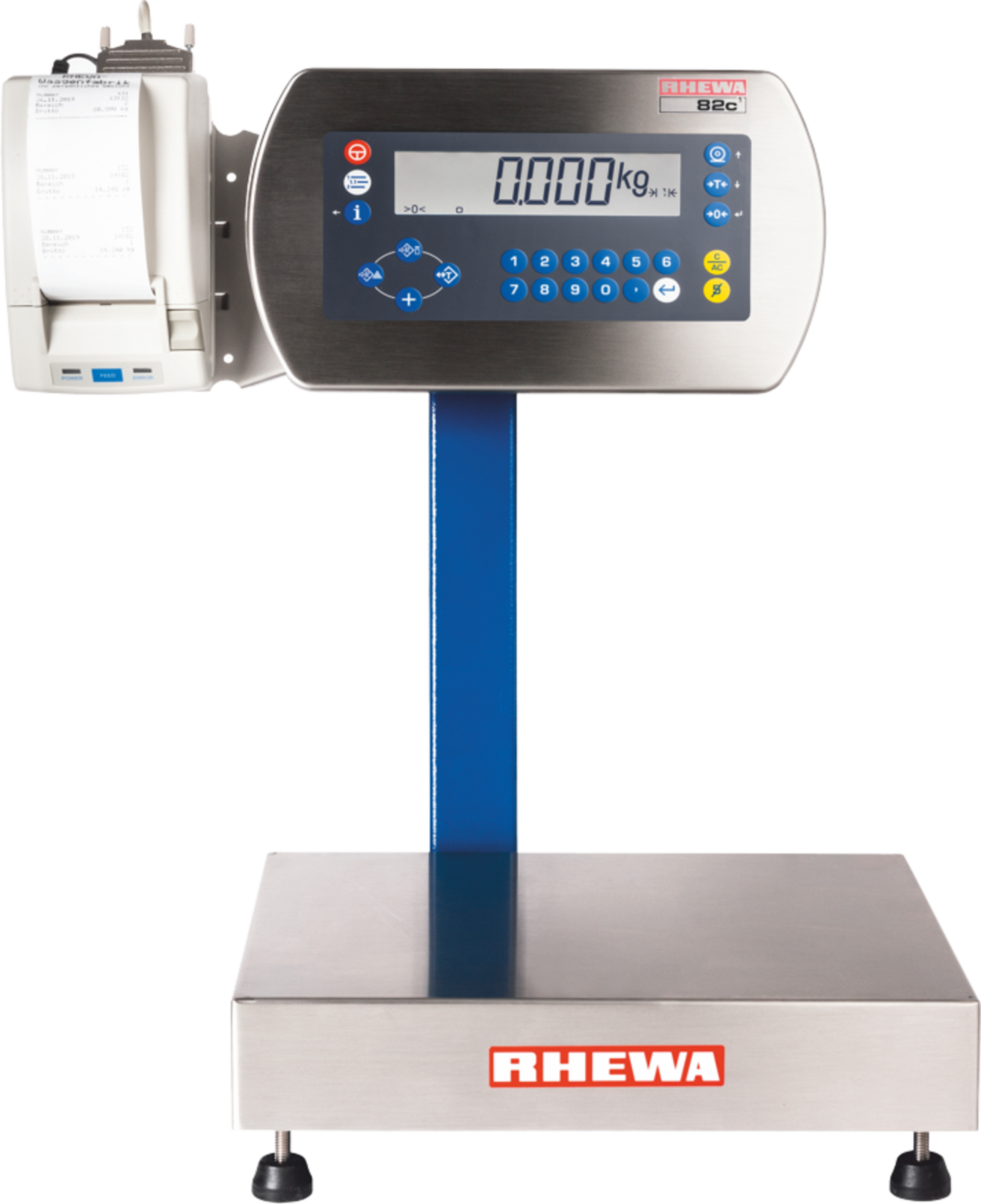

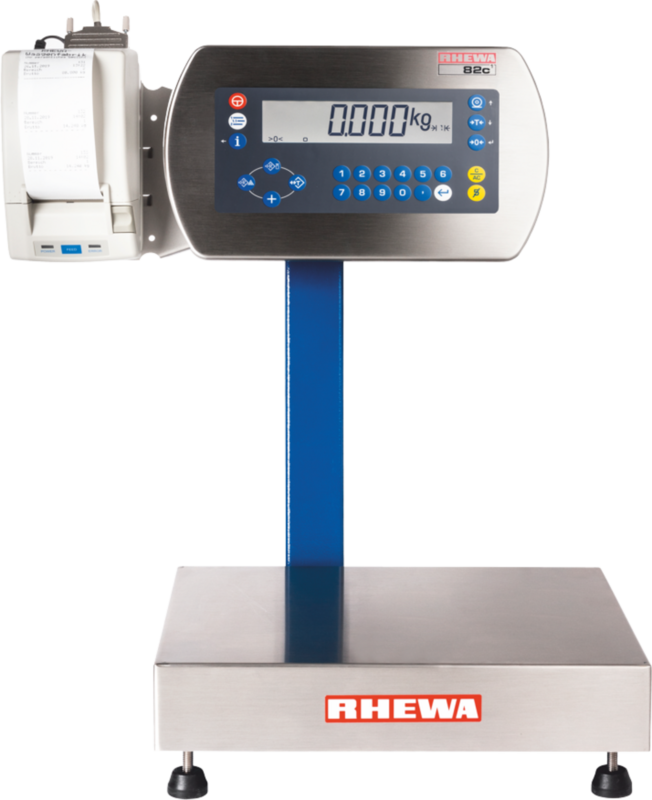

832c-1_mit_Drucker_frontal_rgb

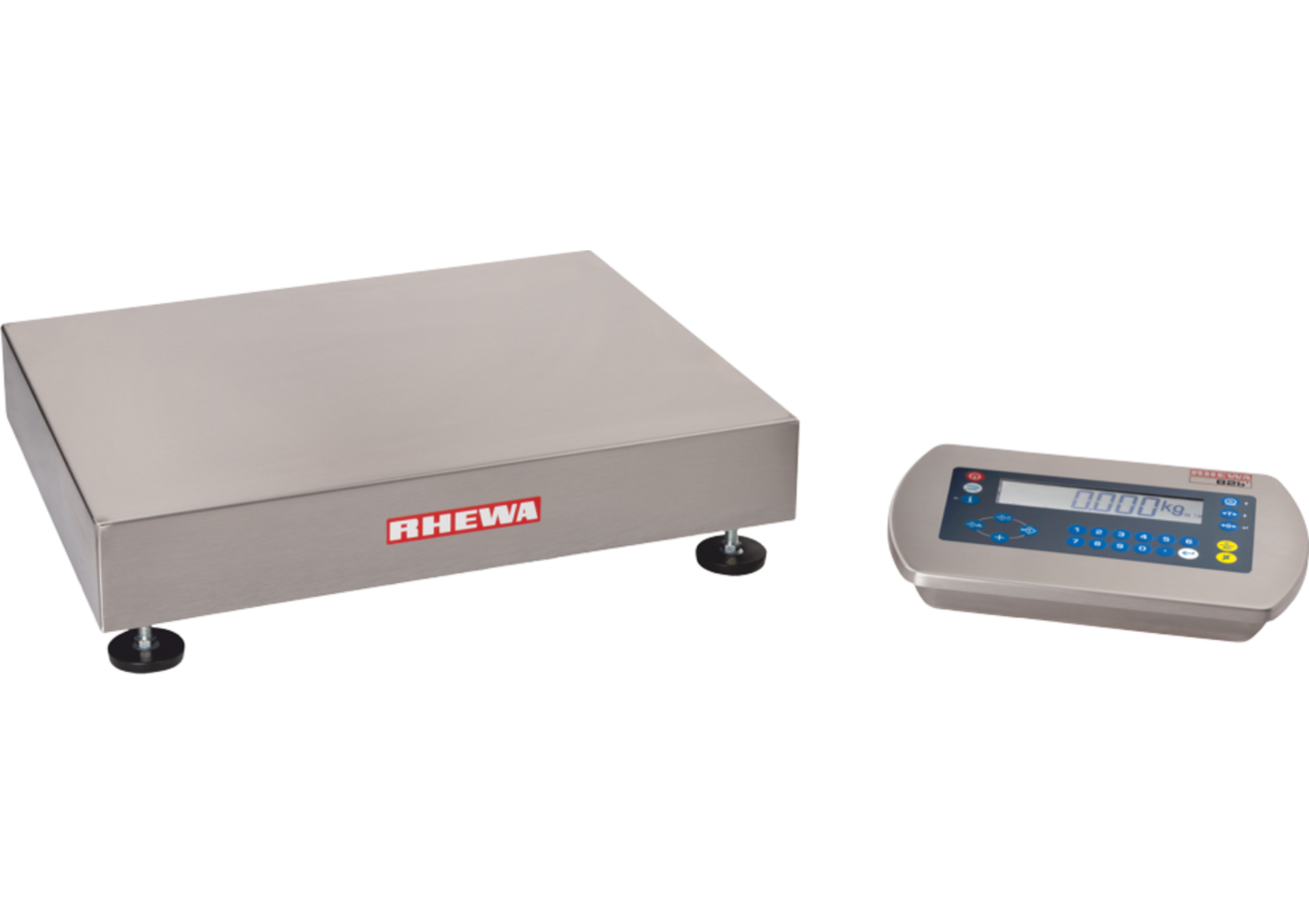

833c-1_Tischwaage_ohne_Stativ

Precise weight and piece count display combined with comfortable numeric input via keypad — for tare values, reference weights, customer numbers, and more. The integrated real-time clock and alibi memory, together with the standard interfaces, allow for a wide range of IT and control applications.

The robust, absolutely waterproof stainless steel housing (IP67) and the large, easy-to-read LCD display with white backlight make this device perfectly suited for demanding industrial environments. It can be used as a tabletop, wall-mounted, or stand-mounted indicator and provides all essential weighing functions.

- Connectable to one weighing platform
- Two serial interfaces for PC connection and peripheral devices such as printer, barcode reader, remote display, etc.
- Counting function with automatic optimization
- One multifunction key (freely assignable)
- Summation function with ten memory slots
- Automatic taring function (can be activated)
- Optional: Ethernet, Profibus, analog output, alibi memory
- Battery-buffered real-time clock
- Up to ten freely configurable weighing workflows and print layouts
- Electronic verification seal
- Integrated wide-range power supply
- Software modules available, e.g. for counting and order-picking systems
- Preconfigured interfaces for various software applications (e.g. DHL, JTL, etc.)
- Measurement value filter for vibration-sensitive weighing tasks

Downloads

  • Product Brochure Features, applications and technical data summarized at a glance
  • User Manual Here you’ll find an overview of all standard features available for this model

Accessories

Indicator cover

0180_Schutzhaube_04

Bracket for mounting on the front of weighing platforms 032-035

0199_Montiert_04

Wall bracket, stainless steel, adjustable tilt design

0200_Wandhalterung_05

Floor stand, powder-coat finish

82basic_auf_Stativ_14

0218 - Floor stand, CNS 1.4301 stainless steel

0218_83sigma

Analogue output option card (instead of RS-232), 0-20 mA, 4-20 mA, 0-5 V, 0-10 V, gross or net, including RS-422, RS-485

0400_Analogausgang_04

0410 - Steckverbindung am Auswertegerät

10/100/1000 Mbit Ethernet network card (instead of RS-232) including alibi memory (0472)

0413_Ethernetkarte_04

0423 - Schnittstellenkonverter für PC RS422 auf RS232

0424 - Schnittstellenkonverter für PC USB auf RS232 (Win 10)

0426 - Bluetooth-Funkverbindung

0604 – COM Terminal software for testing of port functionality

Description

Printer/Peripherals

Roll printer SD-58N, for plain paper
Roll printer SD-58N, for plain paper - 0235

A very compact dot matrix printer that can also be used with carbon paper. When combined with the optional printer bracket, it can be attached to all indicators.

Roll printer SD-58TD, for thermal paper

A very compact direct thermal printer to be used with thermal paper. When combined with the optional printer bracket, it can be attached to all indicators.

Rollendrucker_SD58-TD_09

Roll printer for thermal paper or labels

0275_Thermo-Rollendrucker

0236 - Halter für Rollendrucker 0235, 0274, 0275

0278-11 - Etikettendrucker ED108-TDS-C, für Thermopapier, mit Etikettenspender

0278-12 - Etikettendrucker ED108-TTS-C, für Normal- u. Thermopapier, mit Etikettenspender

0279-2 – Label printer ED 104-TTS/IG with metal enclosure

0279-2 – Label printer ED 104-TTS-IG with metal enclosure, direct thermal and thermal transfer, including label dispenser

0238-2 - Formulardrucker LQ-590II, 24-Nadel-Matrixdrucker (80 Spalten/A4)

USB data logger 0267-5: Ultra-simple recording of weighing data on a standard USB stick for processing on a PC using materials management software, Excel, etc.

USB-Datenlogger_0267-5
USB data logger 0267-5

0267/6-1 - Data logger for storage of weighing data

0267/6-1 - Data logger for storage of weighing data
0267/6-1 - Data logger for storage of weighing data

0285/12 - RFID transponder reader with USB data logger, watertight design (IP66)

RFID transponder reader with integral USB data logger for storing incoming data in files on the USB stick.

Storage capacity of the USB stick supplied: 8 GB.

Weather-resistant plastics enclosure (140 x 110 x 60 mm)

[Translate to english:] 0285/12 RFID-Transponder-Lesegerät mit USB-Datenlogger, wasserdicht IP66
[Translate to english:] 0285/12 RFID-Transponder-Lesegerät mit USB-Datenlogger, wasserdicht IP66
