Weighing platform 070 - for floor scales

Weighing platform 070 - for floor scales
EC Class III approved

Are you interested in this product? Request product!

Description

Weighing platform 070 - for floor scales, EC Class III approved

The all-rounder in the floor scale team.

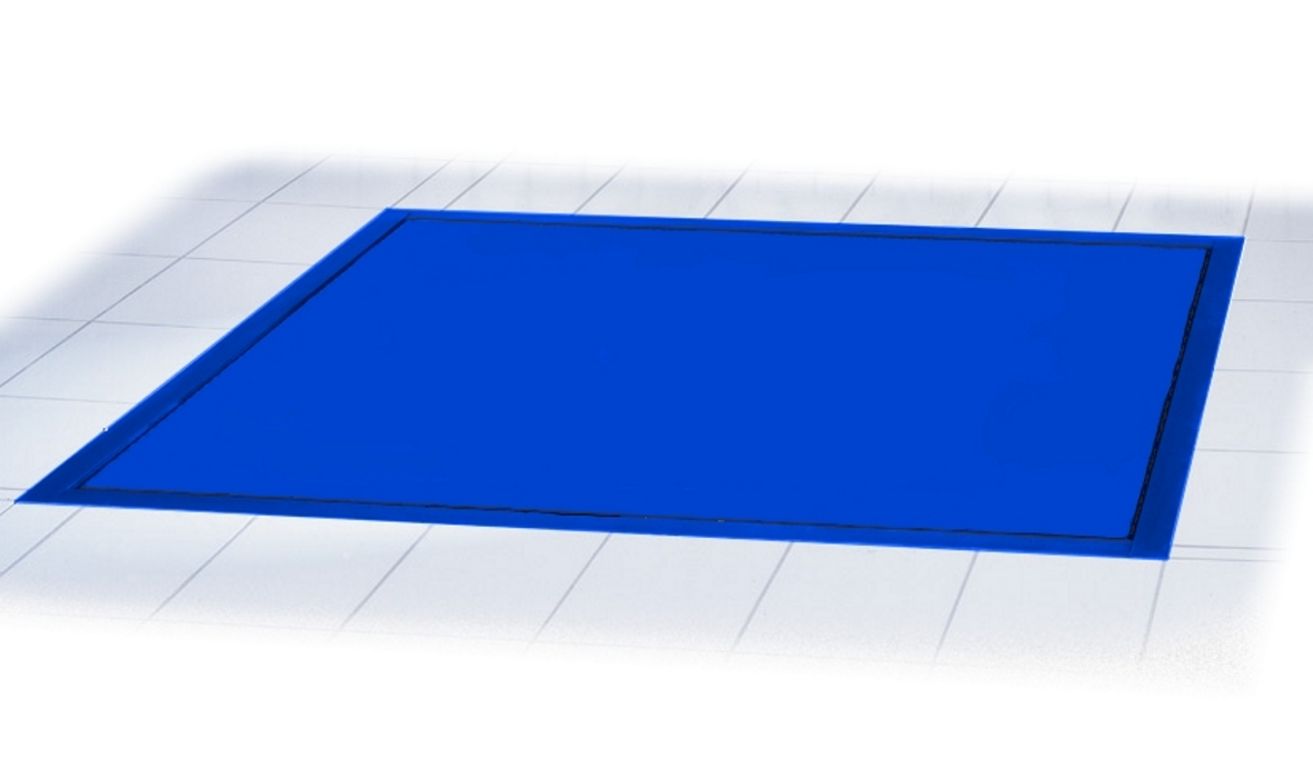

For recessed use or surface-mounted with ramps (optional).

Its low overall height means it can be installed flush with the floor wherever shallow pits are the only option.

Powder-coated (stainless steel version: see Weighing platform 074)

Custom sizes on request.

Weighing Bridge 070: Low Profile, Extremely Robust, Highly Versatile

With the 070 weighing bridge, you are choosing a floor scale that can be customized with numerous optional elements to become the industrial scale your company needs.

Available options include a calibrated version, a detachable plug connection to the evaluation device, a two- or even three-range function, and various standard or custom dimensions depending on on-site conditions. Additional features such as bumpers or foundation frames (for installations in a pit) as well as ramps for above-ground solutions are also available.

Special dimensions upon request.

Downloads

Versions
Platform size mm	Weighing range kg	Scale interval g	Order no.
1000 x 800	2 - 300	100	070/300/100
1000 x 800	4 - 600	200	070/600/100
1000 x 800	10 - 1500	500	070/1500/100
1250 x 1000	2 - 300	100	070/300/125
1250 x 1000	4 - 600	200	070/600/125
1250 x 1000	10 - 1500	500	070/1500/125
1500 x 1250	4 - 600	200	070/600/150
1500 x 1250	10 - 1500	500	070/1500/150
1500 x 1250	20 - 3000	1000	070/3000/150
1500 x 1500	4 - 600	200	070/600/150Q
1500 x 1500	10 - 1500	500	070/1500/150Q
1500 x 1500	20 - 3000	1000	070/3000/150Q
2000 x 1500	10 - 1500	500	070/1500/200
2000 x 1500	40 - 5000	2000	070/5000/200
2000 x 1500	40 - 6000	2000	070/6000/200
