Description

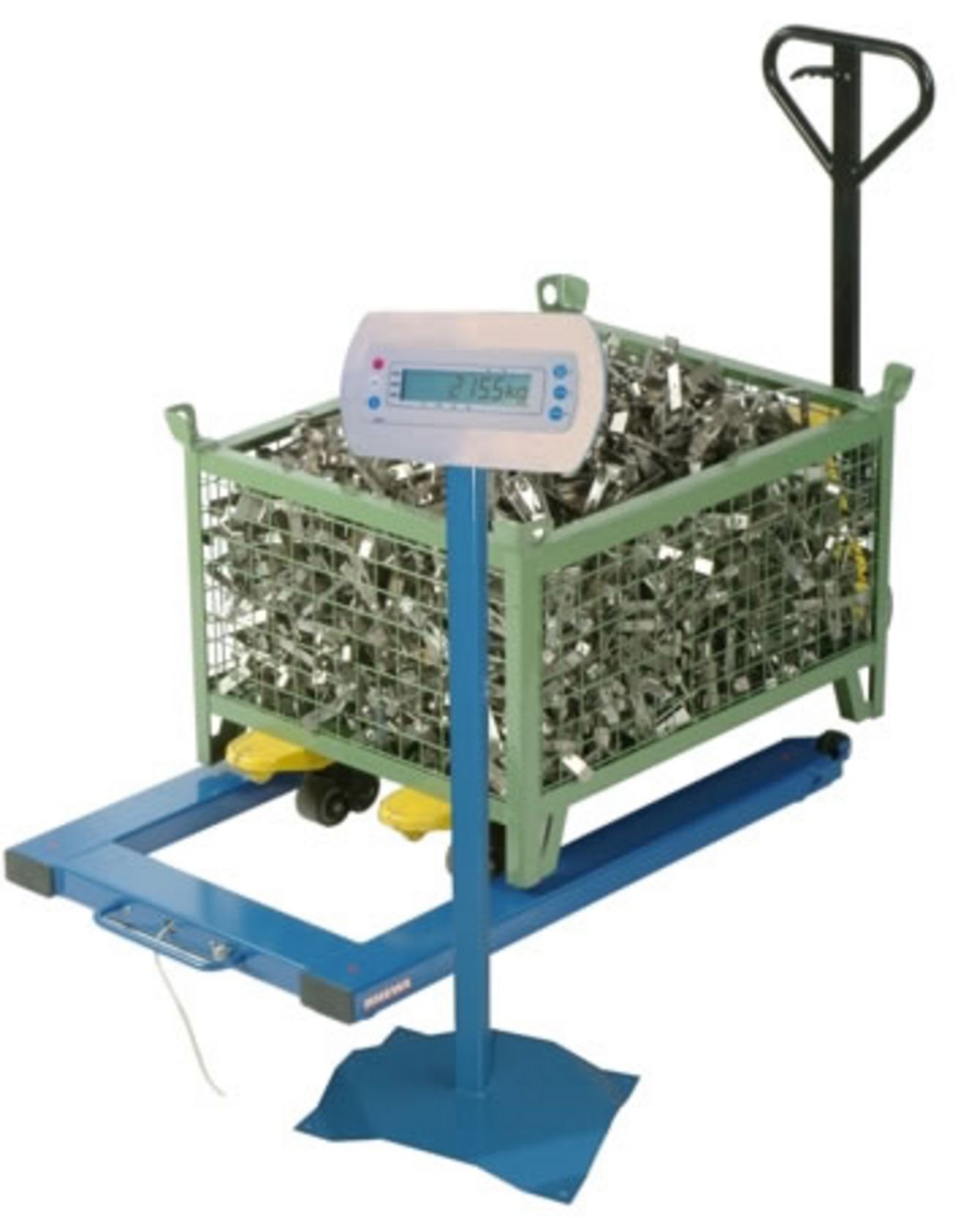

Pallet scale 850, EC Class III approved
Rugged U-frame scale including indicator and dual-range function for weighing of four-way pallets, wire mesh pallets, etc.
Type 850 for mobile use: Its low weight, lifting handle and rollers permit mobile use at various locations. Also with insert plate for weighing small cardboard boxes.
Comes in two standard versions:
- Version A with indicator 82alpha for simple weighing operations with tare function and serial port.
- Version C2 with indicator 82C2 for comfortable weighing operations with count and accumulate functions, numeric pad for tare entry, two serial ports.
Also available with printer.
For other weighing ranges, versions and indicators, see weighing platform 050.
Downloads
- Product Brochure Features, Applications, and Technical Data Summarized at a Glance
- Dimensional Drawing All dimensions necessary for installation or setup
- User Manual 82alpha All standard available functions are described here for the user
- User Manual 82C-2 All standard available functions are described here for the user
- Installation Guide Instructions and detailed descriptions to ensure the product can be quickly and correctly put into use
| Platform mm | Weighing range kg | Scale interval g | Maximum safe load kg | Order no. |
| 1250 x 840 | 4 - 600 | to 300 kg - 100 from 300 kg - 200 | 1800 | 850A/600 850C2/600 |
| 1250 x 840 | 10 - 1500 | to 1500 kg - 500 | 3500 | 850A/1500 |
| 1250 x 840 | 10 - 1500 | to 600 kg - 200 from 600 kg - 500 | 3500 | 850C2/1500 |
| 1250 x 840 | 20 - 2000 | to 1500 kg - 500 from 1500 kg - 1000 | 3500 | 850A/2000 850C2/2000 |
Options
Floor stand, powder-coat finish
A very compact dot matrix printer that can also be used with carbon paper. When combined with the optional printer bracket, it can be attached to all indicators.
