Description

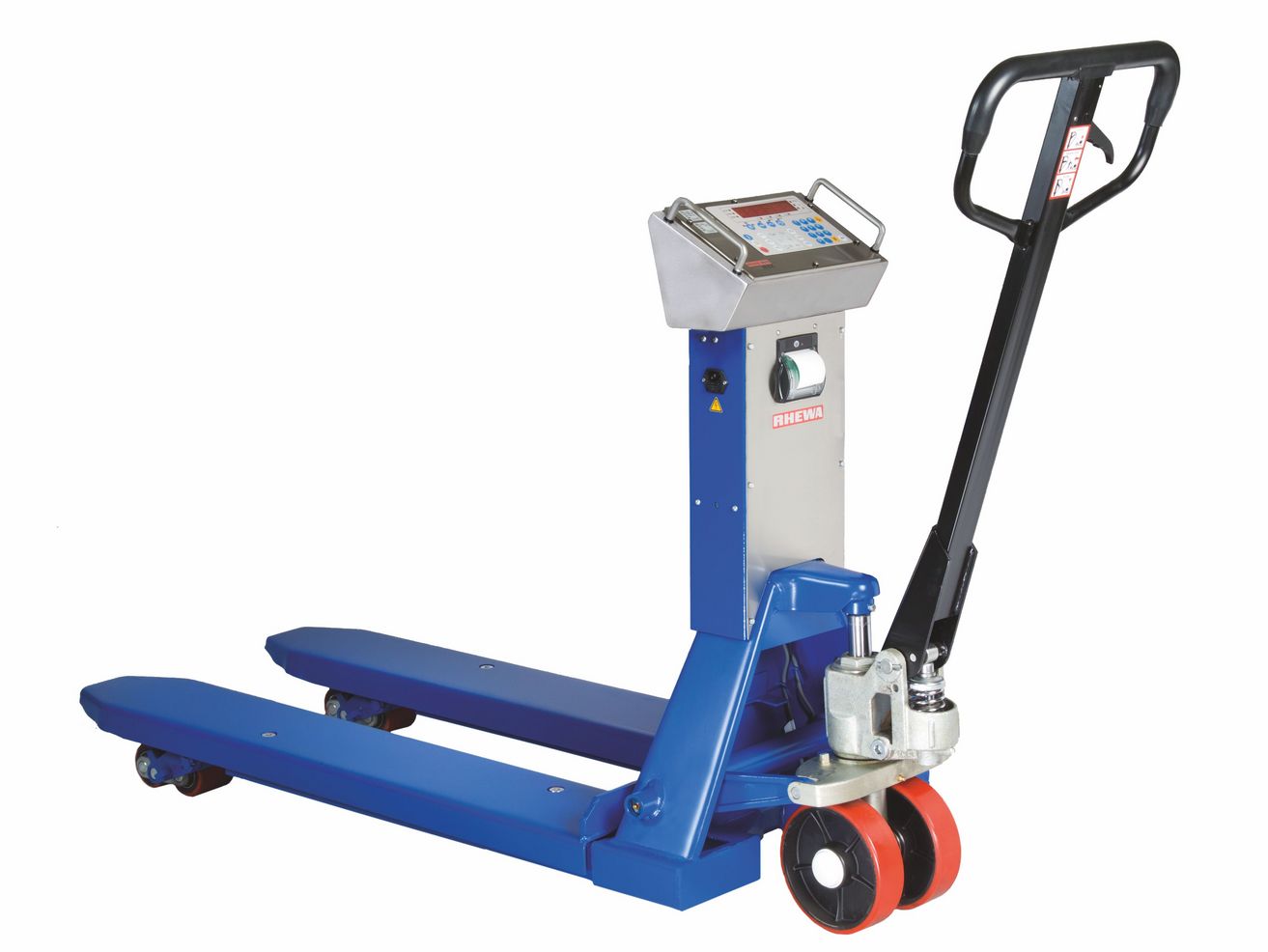

Hand pallet truck, type 956, for non-trade weighing applications
Rugged hand pallet truck with integral scale - for the transportation and weighing of pallets/wire mesh pallets in one operation. Torsionally rigid U-frame design, paint finish, tandem load rollers. Integral rechargeable battery and charger, including dual-range function.
User-friendly indicator electronics in a stainless steel enclosure. Comes in three standard versions:
- Version B with indicator electronics 82b plus for simple weighing and taring (automatic) and a serial port
- Version C with indicator electronics 82c plus for comfortable weighing with count and accumulate functions, numeric keypad, manual tare entry, two serial ports and a legal-for-trade data memory
- Version Sigma with indicator electronics 83sigma for weighing, counting, accumulating (up to 160 accumulation memories), manual tare entry via numeric keypad, two serial ports, port for connecting a second weighing platform, legal-for-trade data memory
Also available with printer.
Downloads
| Fork length x overall fork width in mm | Weighing range kg | Scale interval g | Maximum safe load in kg | Order no. |
| 1150 x 535 | 0 - 2000 | to 1000kg: 500 from 1000kg: 1000 | 2300 | 956B/2000 956C/2000 956Z/2000 |
Options
0267/6-1 - Data logger for storage of weighing data
0305 - Holder with clipboard for paperwork
![[Translate to english:] 0305 - Halterung mit Klemmboard für Arbeitspapiere](/fileadmin/produkte/Zubehoer/0305_f%C3%BCr_856_956.png "[Translate to english:] 0305 - Halterung mit Klemmboard für Arbeitspapiere")
0413/15-2 - WiFi module attached to display enclosure for 83sigma
0433/82bc-2 – Visual signalling device for target/actual monitoring or indicating the scale status
0433/82bc-2 – Visual signalling device for target/actual monitoring or indicating the scale status, 3 colours (blue, green, red)
![[Translate to english:] 0433/82bc-2 – Optischer Signalgeber zur Soll-Ist-Kontrolle oder Anzeige des Waagenzustands](/fileadmin/produkte/Zubehoer/0433-82bc-2_Signalgeber.png "[Translate to english:] 0433/82bc-2 – Optischer Signalgeber zur Soll-Ist-Kontrolle oder Anzeige des Waagenzustands")
Printers
Label printer (thermal paper), including bracket and central voltage supply via hand pallet truck rechargeable battery
