Description

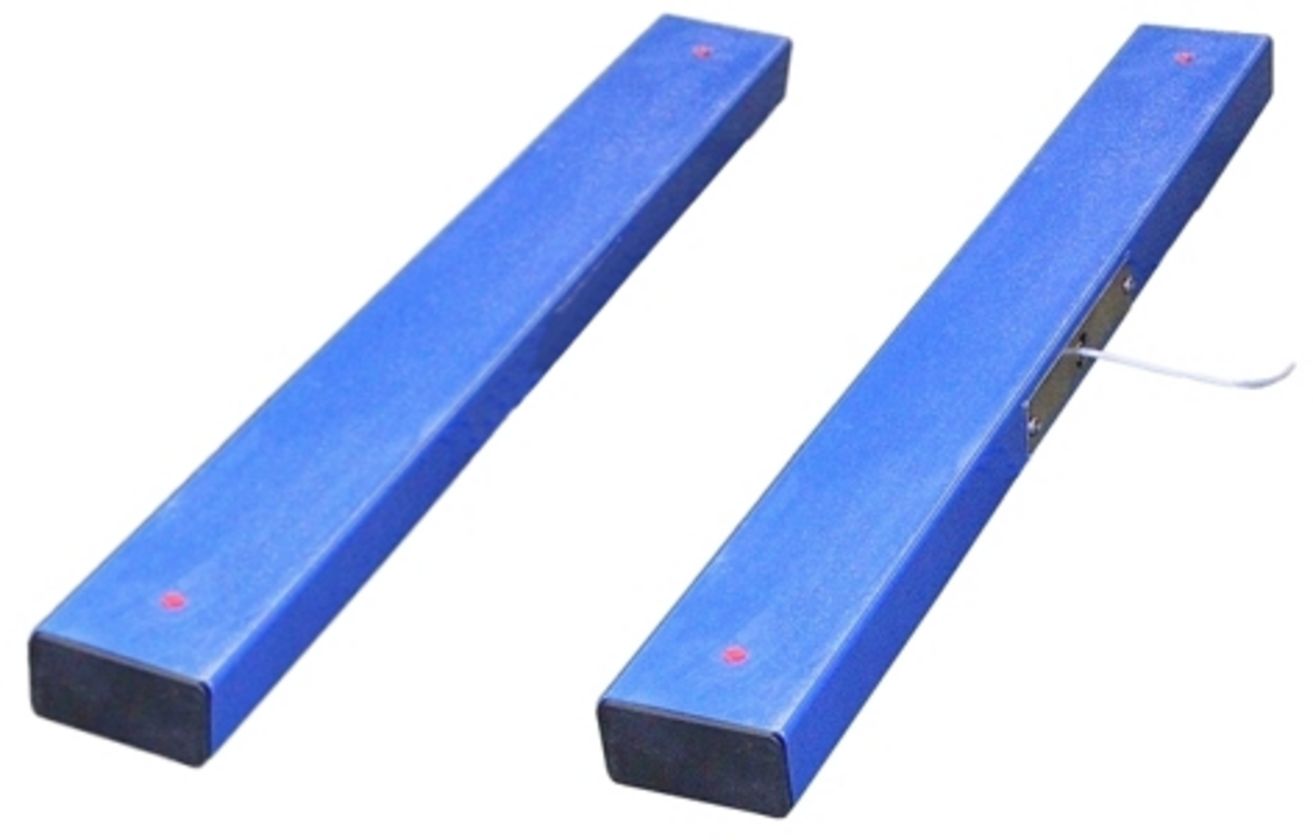

Loadbars 058, EC Class III approved
Loadbar set consisting of two loadbars for stationary use.
User-positionable fixing plates permit flexible attachment of torsionally rigid add-ons.
Powder-coat finish.
Available in three standard lengths:
Note: Verification on site once fully mounted!
| Carrier length mm | Weighing range kg | Scale interval g | Maximum safe load kg | Order no. |
| 1000 | 4 - 600 | 200 | 1800 | 058/600/1000 |
| 1000 | 10 - 1500 | 500 | 3500 | 058/1500/1000 |
| 1000 | 20 - 2000 | 1000 | 3500 | 058/2000/1000 |
| 1000 | 20 - 3000 | 1000 | 4000 | 058/3000/1000 |
| 1250 | 4 - 600 | 200 | 1800 | 058/600/1250 |
| 1250 | 10 - 1500 | 500 | 3500 | 058/1500/1250 |
| 1250 | 20 - 2000 | 1000 | 3500 | 058/2000/1250 |
| 1250 | 20 - 3000 | 1000 | 4000 | 058/3000/1250 |
| 1500 | 4 - 600 | 200 | 1800 | 058/600/1500 |
| 1500 | 10 - 1500 | 500 | 3500 | 058/1500/1500 |
| 1500 | 20 - 2000 | 1000 | 3500 | 058/2000/1500 |
| 1500 | 20 - 3000 | 1000 | 4000 | 058/3000/1500 |
Optionen

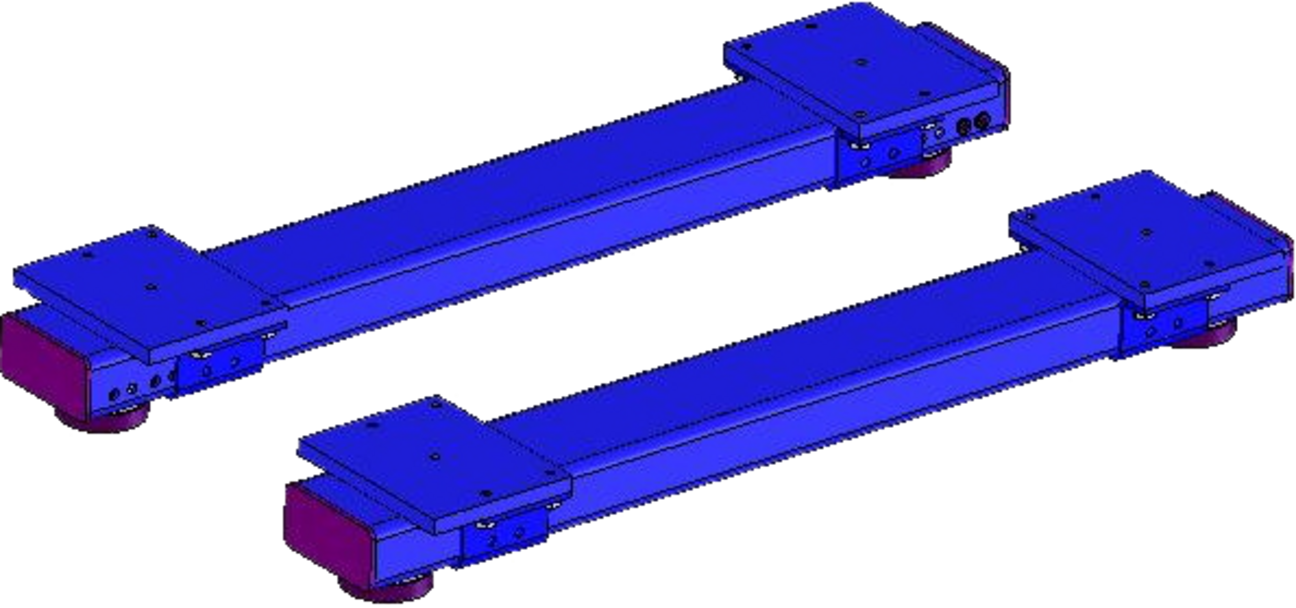

0569/2 - Mounting plate for add-ons
Mounting plate with standard pre-drilled holes, including mounting set, user positionable, 4 nos. required per system.
![[Translate to english:] 0569/2 - Anschlussplatte für Aufbauten](/fileadmin/produkte/Zubehoer/058_0569.png "[Translate to english:] 0569/2 - Anschlussplatte für Aufbauten")
