Description

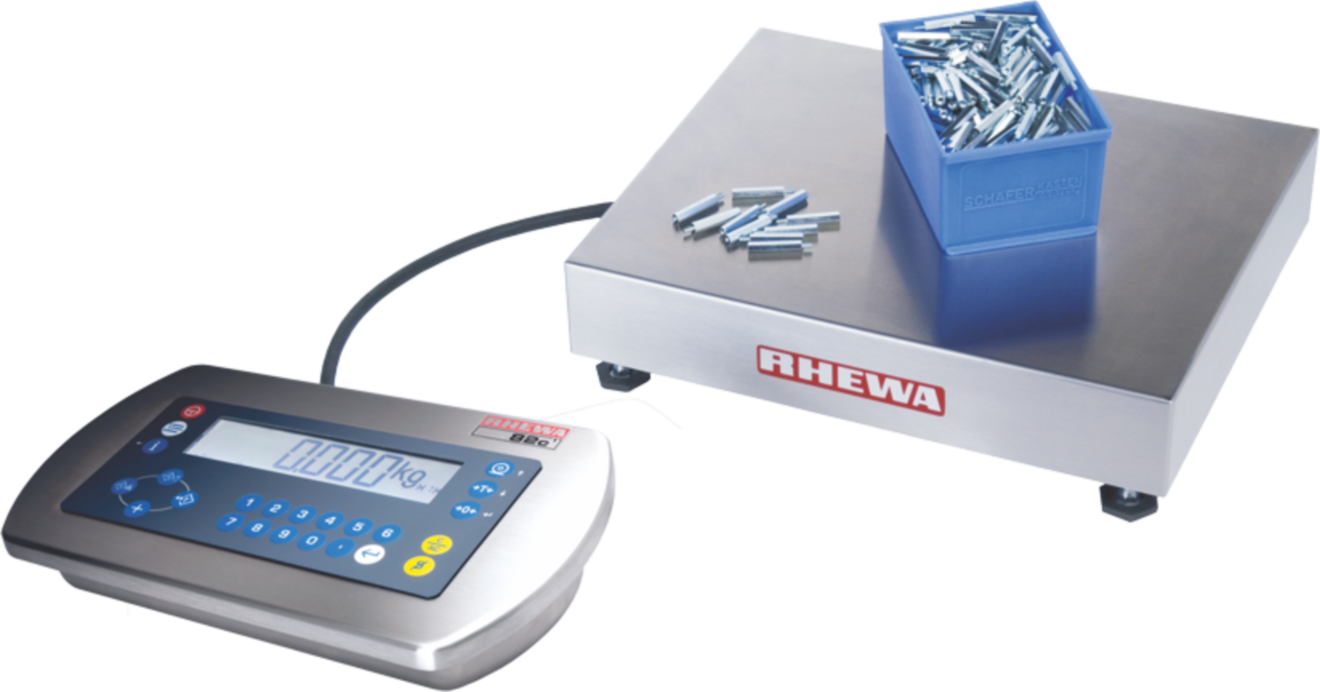

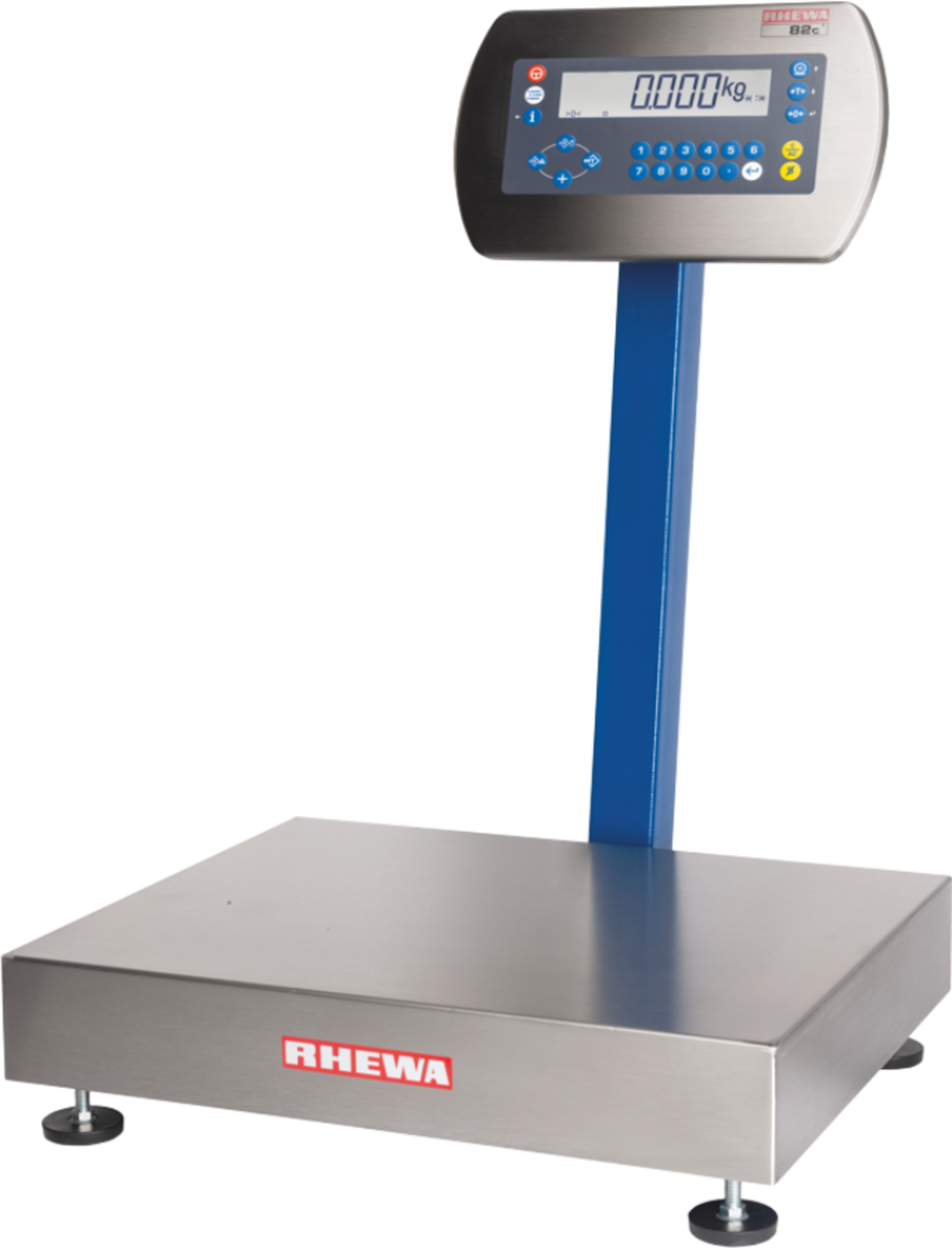

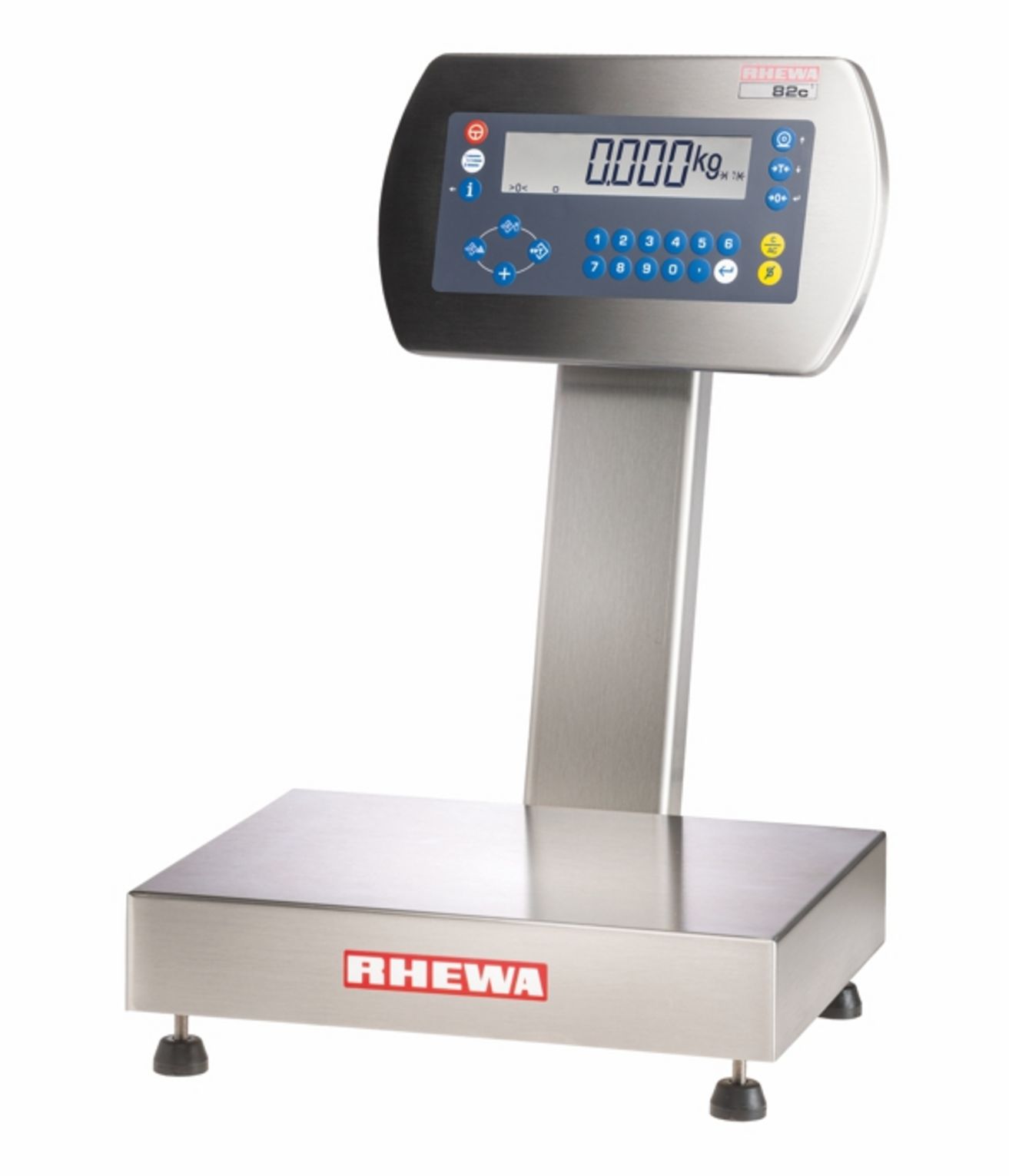

Electronic counting scales 932c1 and 933c1
Robust and highly precise counting scales with readout unit 82c1 for easy, intuitive piece counting without the need for an additional reference scale.
Reliable industrial design with aluminum load cell, IP 66. Readout unit with highly readable LCD display and numeric keypad for entering tare or reference weights.
- Summation function with 10 totalizers.
- Two serial RS232 interfaces on board for computer connection or printer connection.
- Alternatively, Ethernet (optional card). Optionally available with stand.
Powder-coated, platform, and readout unit in stainless steel.
Downloads
Versions
| Platform mm | Weighing range kg | For parts from g | Order Number |
| 350 x 280 | 0,04-6 | 0,5 | 932c1/6 |
| 350 x 280 | 0,1-15 | 1 | 932c1/15 |
| 350 x 280 | 0,2 - 30 | 2 | 932c1/30 |
| Platform mm | Weighing range kg | For parts from g | Order Number |
| 500 x 400 | 30 | 2 | 933c1/30 |
| 500 x 400 | 60 | 5 | 933c1/60 |
| 500 x 400 | 150 | 10 | 933c1/150 |
Options
Bracket for mounting on the front of weighing platforms 032-035
Wall bracket, stainless steel, adjustable tilt design
0230/1 - Stainless steel rail, 260 mm wide, 40 mm high - for 832-Aqua only
![[Translate to english:] 0230/1 - Edelstahlbügel, 260 mm breit, 40 mm hoch - nur für 832-Aqua](/fileadmin/produkte/Zubehoer/0230_Edelstahlbuegel.png "[Translate to english:] 0230/1 - Edelstahlbügel, 260 mm breit, 40 mm hoch - nur für 832-Aqua")
0230/2 - Stainless steel rail, 360 mm wide, 40 mm high - for 833-Aqua only
A very compact dot matrix printer that can also be used with carbon paper. When combined with the optional printer bracket, it can be attached to all indicators.
0236 - Halter für Rollendrucker 0235, 0274, 0275
Roll printer SD-58TD, for thermal paper
A very compact direct thermal printer to be used with thermal paper. When combined with the optional printer bracket, it can be attached to all indicators.
