Description

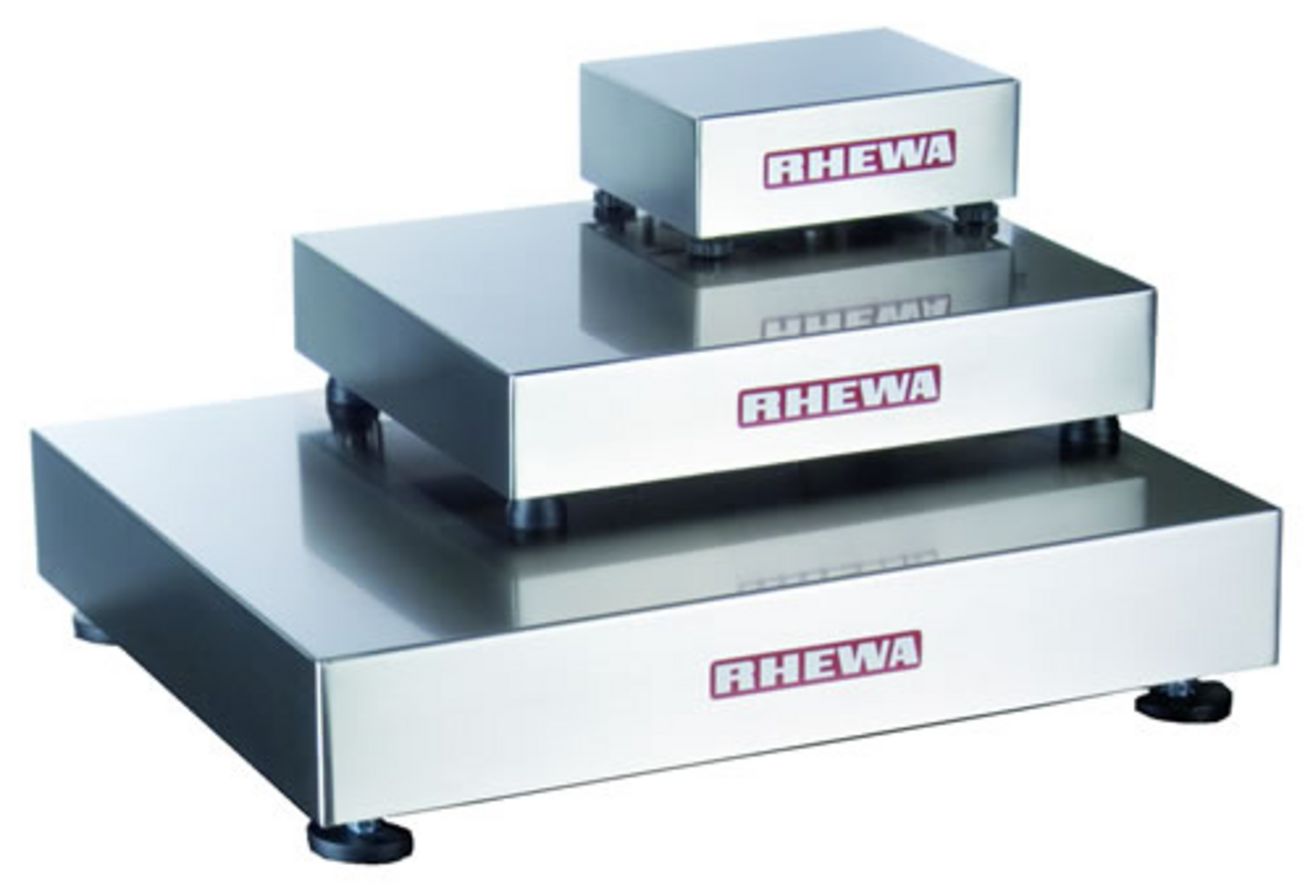

Weighing platforms 031, 032, 033 for bench scales
Rugged industrial-design weighing platforms, EC Class III approved. This range comes in an impressive range of sizes and is thus extremely versatile
Weighing platform 031 for small items. The compact platform size means it can be used whenever space is at a premium. Also suitable as a reference scale.
Stainless steel platform, powder-coated support.
The weighing platforms also come in CNS 1.4301 stainless steel with an IP68 stainless steel load cell. For the 100% stainless steel version of weighing platform 031 see weighing platform 031-2.
Other weighing ranges and custom sizes on request.
Weighing platform 031/032/033 is also available as compact scale 831/832/833 including indicator.
Additional platform sizes 034/035
Downloads
- [Translate to english:] Produkt-Broschüre [Translate to english:] Merkmale, Anwendungsbereiche und technischen Daten auf einen Blick zusammengefasst
- [Translate to english:] Maßblatt [Translate to english:] Alle Maße, die zur Aufstellung oder Einbau notwendig sind
- [Translate to english:] Aufstellanleitung [Translate to english:] Hinweise und detaillierte Beschreibungen, damit das Produkt schnell und korrekt zum Einsatz gebracht werden kann
| Platform size mm | Weighing range kg | Scale interval g | Order no. |
| 170 x 150 | 0,01 - 1,5 | 0,5 | 031/1,5 |
| 170 x 150 | 0,02 - 3 | 1 | 031/3 |
| 170 x 150 | 0,04 - 6 | 2 | 031/6 |
| 170 x 150 | 0,1 - 15 | 5 | 031/15 |
| 350 x 280 | 0,02 - 3 | 1 | 032/3 |
| 350 x 280 | 0,04 - 6 | 2 | 032/6 |
| 350 x 280 | 0,1 - 15 | 5 | 032/15 |
| 350 x 280 | 0,2- 30 | 10 | 032/30 |
| 500 x 400 | 0,2 - 30 | 10 | 033/30 |
| 500 x 400 | 0,4 - 35 | 20 | 033/35 |
| 500 x 400 | 0,4 - 60 | 20 | 033/60 |
| 500 x 400 | 1 - 150 | 50 | 033/150 |
Options 032
0230/1 - Stainless steel rail, 260 mm wide, 40 mm high - for 832-Aqua only
![[Translate to english:] 0230/1 - Edelstahlbügel, 260 mm breit, 40 mm hoch - nur für 832-Aqua](/fileadmin/produkte/Zubehoer/0230_Edelstahlbuegel.png "[Translate to english:] 0230/1 - Edelstahlbügel, 260 mm breit, 40 mm hoch - nur für 832-Aqua")
0410 - Steckverbindung am Auswertegerät
Options 033
0230/2 - Stainless steel rail, 360 mm wide, 40 mm high - for 833-Aqua only
