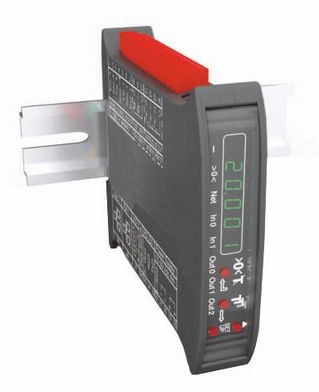

The professional solutions with PROFINET and, if required, analog output.

The 94-RHM-1 and 94-RHM-2 signal amplifiers each feature three interfaces and a high measurement rate of up to 600 measurements per minute. In particular, the PROFINET interface serves as the ideal link to higher-level control systems. Elegant integration is also possible via Ethernet. An RS232 interface is likewise available. If needed, the signal amplifier can additionally be equipped with a current interface (analog output), which can be parameterized accordingly.

The signal amplifier is mounted on a DIN rail inside the control cabinet (power supply provided on-site via the control cabinet) or alternatively via an optional connection box with its own power supply.

Features

• Minimum connection value: 80 Ohm.
• 2 inputs and 2 outputs for trigger pulses.
• 6 mm green LCD display.
• Complete amplifier configuration via the control buttons on the signal amplifier.
• Characteristic value adjustment based on the load cell characteristics.

Variants

• Signal Amplifier 94-RHM-1: with PROFINET and Ethernet.
• Signal Amplifier 94-RHM-2: with PROFINET, Ethernet, and analog output.
