The ideal entry-level solution for simple connection via analog output to PLCs and similar control systems.

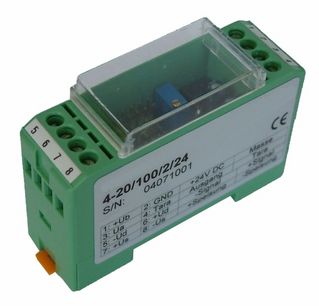

The analog signal amplifier 94-RHM-A enables zero balance adjustment across 100% of the measuring range via a trigger signal. It operates with a low current consumption of only 38 mA and provides an output signal of 4–20 mA. Up to four load cells can be connected in parallel to the 94-RHM-A.

The signal amplifier is mounted on a DIN rail inside the control cabinet (power supply provided on-site via the control cabinet) or alternatively via an optional connection box with its own power supply.

Features

• Zero point can be set across the entire measuring range via a trigger signal.
• Selectable gain levels via jumper bridges.
• Low current consumption.
• Operating status indicated via LEDs.
